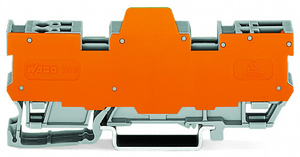

WAGO 769-203 2-Pin Disconnect Carrier Terminal Block with Shield Contact and 2 Jumper Positions
Wago
$6.10
2-pin disconnect carrier terminal block; with shield contact; with 2 jumper positions; for DIN-rail 35 x 15 and 35 x 7.5; gray.
The WAGO 769 X-COM series carrier feed-through terminal block is a gray, 1-deck unit featuring a tab disconnect, two jumper positions, a shield contact, and a center marking slot. It supports one shield-through pole and two wires with plug-in pin connections, rated for 16A. Designed for DIN-35 rail mounting (35 x 15 / 35 x 7.5) with a 5mm width, it is equivalent to model 769203.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.177 MJ
- flammability class per ul94:
- V0
- height:
- 101 mm / 3.976 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- rated current:
- 16 A
- rated surge voltage iii 3:
- 4 kV
- weight:
- 11.400 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
