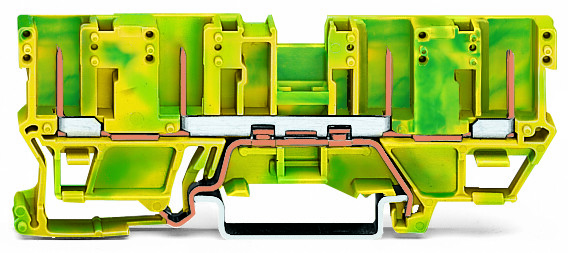

WAGO 769-207
Wago
$5.34
4-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; green-yellow.
The WAGO 769 X-COM series carrier ground/earthing terminal block is a green-yellow, 1-deck/level component with a center marking slot, designed for grounding/protective-earth (1PE) applications. It accommodates 4 wires through 2+2 plug-in pin connections and is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 5mm width. This terminal block is equivalent to the 769207 model.
- color:
- Green-yellow
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.161 MJ
- flammability class per ul94:
- V0
- height:
- 87.5 mm / 3.445 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- safety information 1:
- 1-conductor angled female plugs cannot be used.
- weight:
- 10.190 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
