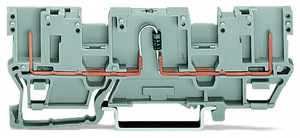

WAGO 769-208/281-410 2-Pin Component Carrier Block with Diode 1N4007, 2 Jumper Positions, Gray
Wago
$12.77
2-pin component carrier block; with 2 jumper positions; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; gray.
The WAGO 769 X-COM series component carrier feed-through terminal block is a gray, single-deck unit featuring a diode (1N4007 with the anode on the left side), two jumper positions, and a center marking slot. It supports one feed-through pole for two wires, each with a plug-in pin connection, and is rated for a current of 0.5A. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 769208281410.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.170 MJ
- flammability class per ul94:
- V0
- height:
- 87.5 mm / 3.445 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 0.5 A
- weight:
- 7.500 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
