WAGO 769-209/281-434 2-pin component carrier block; with 2 jumper positions; LED (red); 24 VDC; for DIN-rail 35 x 15 and 35 x 7.5; gray
LED carrier terminal block; with red LED (PN); 24 VDC; rail-mount; 2-pin; 5 mm wide; gray.

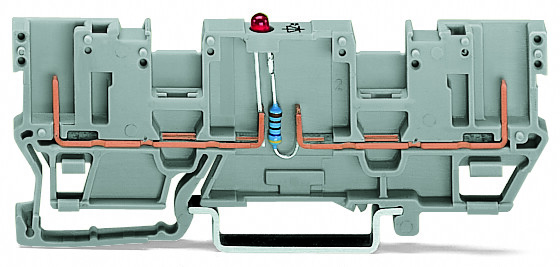

The WAGO 769 X-COM series component carrier feed-through/thru terminal block is a 1-deck/level unit featuring a red LED indicator (24Vdc, anode on the left side), two jumper positions, and a center marking slot. It is gray in color and designed for a single feed-through pole (1P) with two wires (1 plug-in pin + 1 plug-in pin). The terminal block has a rated current of 0.025A and utilizes plug-in pin connections. It is compatible with DIN-35 rail mounting (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model number 769209281434.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.159 MJ
- flammability class per ul94:
- V0
- height:
- 87.5 mm / 3.445 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 0.025 A
- weight:
- 7.581 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
