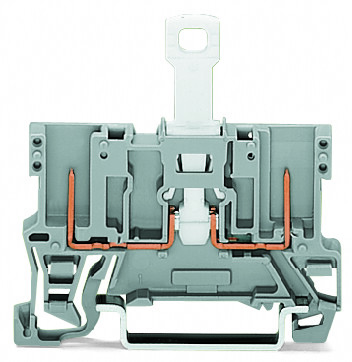

WAGO 769-222 2-pin disconnect carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; gray
Wago
$4.47
2-pin disconnect carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; gray.
The WAGO 769 X-COM series carrier feed-through terminal block is a gray, 1-deck/level component featuring a tab disconnect and center marking slot. It supports one feed-through pole (1P) and accommodates two wires via plug-in pin connections (1+1). Rated for a current of 16A, it is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, and is equivalent to model 769222.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.112 MJ
- flammability class per ul94:
- V0
- height:
- 52.5 mm / 2.067 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- rated current:
- 16 A
- rated surge voltage iii 3:
- 6 kV
- safety information 1:
- 2-conductor female plugs cannot be used.
- weight:
- 5.087 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
