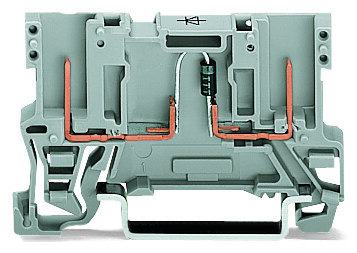

WAGO 769-228/281-410 2-Pin Component Carrier Block with 1N4007 Diode, Anode Left, for DIN-Rail 35 x 15 and 35 x 7.5, 4 mm², Gray
Wago
$10.82
2-pin component carrier block; with diode 1N4007; anode, left side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; gray.
The component is a WAGO 769 X-COM series feed-through/thru terminal block with a single deck/level and an integrated diode (1N4007 with the anode on the left side). It features a center marking slot, is gray in color, and has one feed-through pole (1P) that accommodates two wires via plug-in pin connections. It is rated for a current of 0.5A and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm. This terminal block is equivalent to the model number 769228281410.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.112 MJ
- flammability class per ul94:
- V0
- height:
- 52.5 mm / 2.067 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 0.5 A
- safety information 1:
- 2-conductor female plugs cannot be used.
- weight:
- 4.840 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
