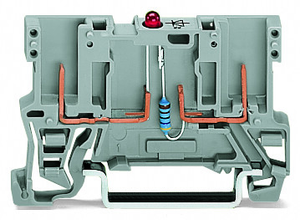

WAGO 769-229/281-434 2-Pin Component Carrier Block with Red LED, 24 VDC, for DIN-Rail 35 x 15 and 35 x 7.5, Gray
Wago
$10.70
LED carrier terminal block; with red LED (PN); 24 VDC; rail-mount; 2-pin; 5 mm wide; gray.
The WAGO 769 X-COM series component carrier feed-through terminal block is a single-deck unit featuring a red LED indicator (24Vdc, anode on the left side) and a center marking slot. It is gray in color and designed for one feed-through pole with two wires, each having a plug-in pin connection. The terminal block supports a rated current of 0.025A and is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm. This model is equivalent to 769229281434.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fire load:
- 0.096 MJ
- flammability class per ul94:
- V0
- height:
- 52.5 mm / 2.067 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 0.025 A
- safety information 1:
- 2-conductor female plugs cannot be used.
- weight:
- 4.552 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
