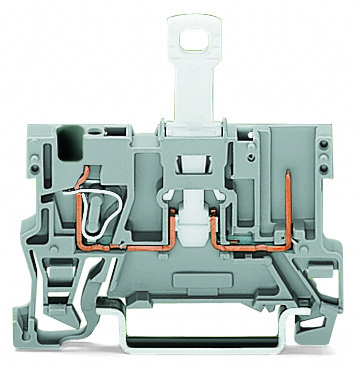

WAGO 769-233 1-Conductor Disconnect Carrier Terminal Block with Shield Contact for DIN-Rail 35 x 15 and 35 x 7.5, 4 mm², CAGE CLAMP, Gray
Wago
$5.70
1-conductor/1-pin disconnect carrier terminal block; with shield contact; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm; CAGE CLAMPp>
Electrical Data
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated current: 16 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 4 mm
- Solid conductor: 0.08 4 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Total number of connection points: 1
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 28.5 mm / 1.122 inch
- Depth: 71.5 mm / 2.815 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.116 MJ
- Weight: 7.736 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821107422
- Customs Tariff No.: 85365080900
The WAGO 769 X-COM series carrier feed-through terminal block is a gray, 1-deck/level component featuring a tab disconnect, shield contact, and center marking slot. It supports a nominal cross-section of 4mm² and accommodates wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG). The terminal block has a rated current of 16A and includes CAGE CLAMP spring connections and plug-in pin connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm and is equivalent to model 769233.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.116 MJ
- flammability class per ul94:
- V0
- height:
- 71.5 mm / 2.815 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 250 V
- number of connection points:
- 1
- number of connection points 2:
- 1
- packaging type:
- Box
- rated current:
- 16 A
- rated surge voltage iii 3:
- 4 kV
- safety information 1:
- 2-conductor female plugs cannot be used.
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 7.736 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
