Wago

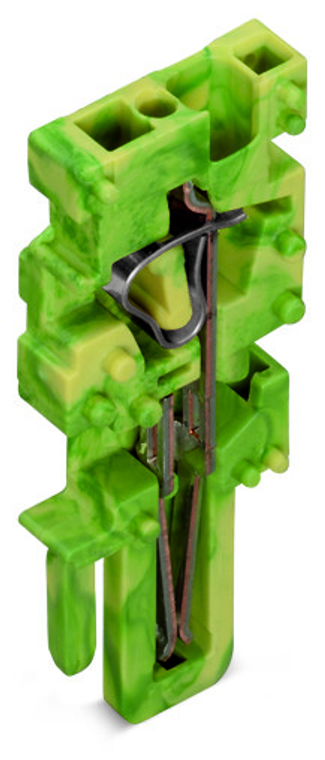

WAGO 769-502/000-016

SKU:

769-502/000-016

UPC:

MPN:

769-502/000-016

Condition:

New

actuation type:

Operating tool

color:

Green-yellow

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

connector connection type:

For conductor

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

18.3 mm / 0.72 inch

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.057 MJ

flammability class per ul94:

V0

height:

45.2 mm / 1.78 inch

insulation material:

Polyamide (PA66)

marking level:

Side marking

module width:

5 mm / 0.197 inch

nominal cross section:

4 mm

packaging type:

Bag

pole no:

1

ratings per:

IEC/EN 61984

safety information 1:

According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

3.281 g

width:

5 mm / 0.197 inch

wiring direction:

Front-entry wiring
