WAGO 769-515/000-016 End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm²; green-yellow
Wago
$1.95
(No reviews yet)
Write a Review
Write a Review
Wago

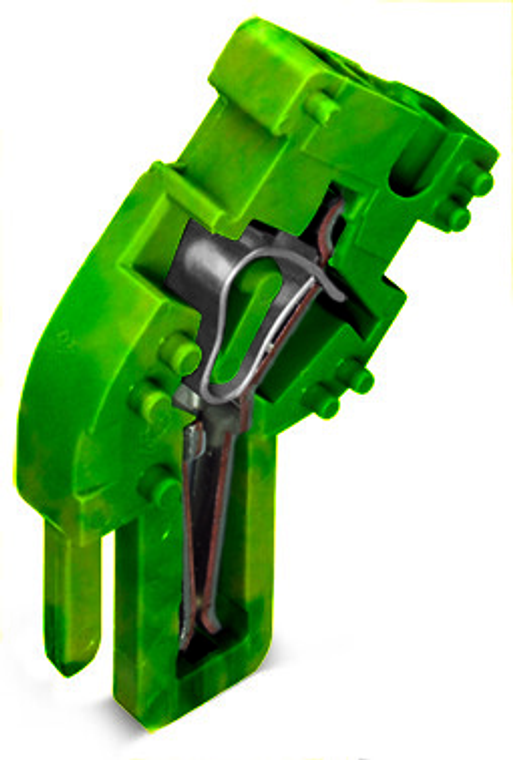

WAGO 769-515/000-016 End module for 1-conductor female connector; angled; 4 mm²; 1-pole; 4,00 mm²; green-yellow
End module for 1-conductor female connector; angled; CAGE CLAMP; 4 mm²; Pin spacing 5 mm; 1-pole; coding finger; 4,00 mm²; green-yellow.
The Angled End Module for a 1-conductor Protective-earth female connector from WAGO's 769 X-COM series features a 5mm pin spacing and supports a nominal cross-section of 4mm², accommodating wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG. It is green-yellow in color and utilizes CAGE CLAMP spring connections for secure and reliable connections. The module is designed for plug-in mounting with a 5mm width and is equivalent to the model number 769515000016.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 26.5 mm / 1.043 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.039 MJ
- flammability class per ul94:
- V0
- height:
- 37.1 mm / 1.461 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- module width:
- 5 mm / 0.197 inch
- nominal cross section:
- 4 mm
- packaging type:
- Bag
- pole no:
- 1
- ratings per:
- IEC/EN 61984
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.303 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
