| Description | Male connector; with CAGE CLAMP connection and fixing flanges; for screw or similar mounting types; for parallel or perpendicular mounting; Pin spacing 5 mm / 0.197 in; 7-pole | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

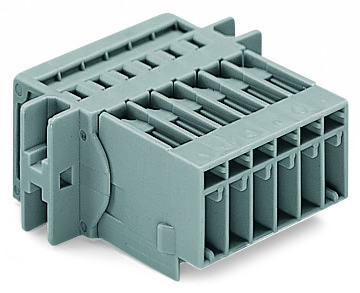

The WAGO 769 X-COM series male connector features mounting flanges, 5mm pin spacing, and 7 poles (7P) with a nominal cross-section of 4mm². It accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG and supports a rated current of 32A. The connector is gray in color and utilizes CAGE CLAMP spring connections, equivalent to model 769607002000.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 40.2 mm / 1.583 inch
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.456 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 18.3 mm / 0.72 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- mounting type:
- Mounting flange
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 7
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 22.178 g
- width:
- 50.4 mm / 1.984 inch
- wiring direction:
- Front-entry wiring
