Wago 769-615/001-000

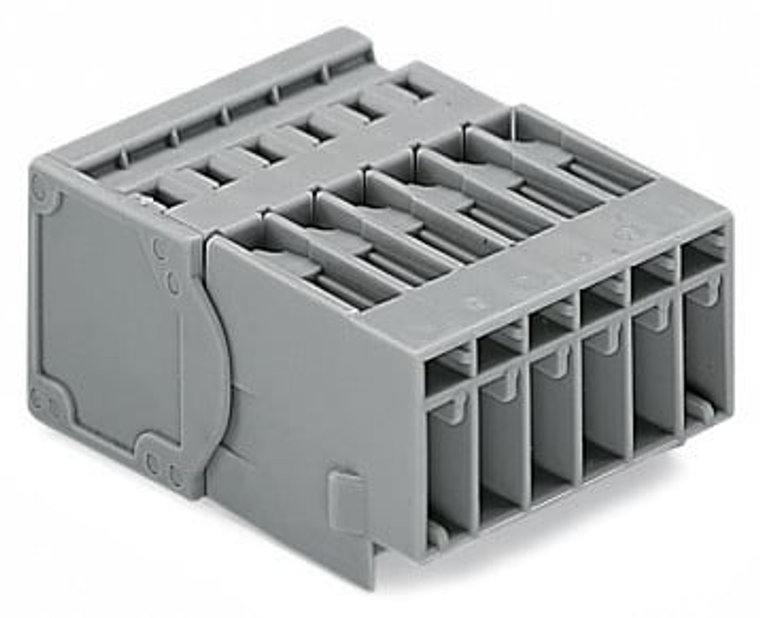

WAGO 769-615/001-000 1-Conductor Male Connector, 15-Pole, 32A, CAGE CLAMP®, 4 mm², 5 mm Pin Spacing, Snap-In Mounting, Gray

Wago
SKU:
769-615/001-000
Availability:
Factory stock
$23.35
Condition:
New
Current Stock:
Description

Description Male connector; with CAGE CLAMP connection and snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing holes 3.5 mm ; with 209-137 mounting adapter also for DIN 35 rail; Pin spacing 5 mm / 0.197 in; 15-pole
Remarks

Item properties

Miscellaneous

Name Value Unit
No. of poles  15
Pin spacing  5 mm / 0.197 in
Total number of connection points  15
Total number of potentials  15
Color  gray
Rated voltage (III / 3) [V]  500  V
Rated impulse voltage (III / 3) [kV]  6  kV
Rated current [A]  32  A
Connection technology  CAGE CLAMP
Number of connection points connector  1
Actuation type  Operating tool
Connectable conductor materials  Copper
Nominal cross section  4 mm nbsp;
Solid conductor  0.08 4 mm / 28 12 AWG
Fine-stranded conductor  0.08 4 mm / 28 12 AWG
Strip length  8 9 mm / 0.31 0.35 Inch
Type of wiring  Front-entry wiring
Insulating material  Polyamide 66 (PA 66)
Fire load [MJ]  0.852  MJ
Weight [g]  43.341  g
Width  78.6 mm / 3.094 Inch
Height from the surface  18.3 mm / 0.72 Inch
Depth  40.2 mm / 1.583 Inch
Pin spacing from [mm]  5  mm
Mounting type  Snap-in mounting foot
.

The WAGO 769 X-COM series male connector features snap-in mounting feet, 15 poles, and a 5mm pin spacing. It supports a nominal cross-section of 4mm² and accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG. Rated for a current of 32A, the gray-colored connector utilizes CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot mounting. It is equivalent to the model number 769615001000.

Additional Information
actuation type:
Operating tool
color:
Gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
connector connection type:
For conductor
contact type pluggable connector:
Male connector/plug
country of origin sales organisation germany:
PL
depth:
40.2 mm / 1.583 inch
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fire load:
0.852 MJ
flammability class per ul94:
V0
height from the surface:
18.3 mm / 0.72 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
mounting type:
Snap-in foot
nominal cross section:
4 mm
nominal voltage iii 3:
500 V
packaging type:
Box
pin spacing:
5 mm / 0.197 inch
pole no:
15
rated current:
32 A
rated surge voltage iii 3:
6 kV
solid conductor:
0.08 4 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
43.411 g
width:
78.6 mm / 3.094 inch
wiring direction:
Front-entry wiring
