| Description | Male connector; with CAGE CLAMP connection and snap-in flanges; for tool-free mounting; Pin spacing 5 mm / 0.197 in; 15-pole |
| Remarks | |
| |
| Item properties | Miscellaneous | Name | Value | Unit | | No. of poles | 15 | | | Pin spacing | 5 mm / 0.197 in | | | Total number of connection points | 15 | | | Total number of potentials | 15 | | | Color | gray | | | Rated voltage (III / 3) [V] | 500 | V | | Rated impulse voltage (III / 3) [kV] | 6 | kV | | Rated current [A] | 32 | A | | Connection technology | CAGE CLAMP | | | Number of connection points connector | 1 | | | Actuation type | Operating tool | | | Connectable conductor materials | Copper | | | Nominal cross section | 4 mm nbsp; | | | Solid conductor | 0.08 4 mm / 28 12 AWG | | | Fine-stranded conductor | 0.08 4 mm / 28 12 AWG | | | Strip length | 8 9 mm / 0.31 0.35 Inch | | | Type of wiring | Front-entry wiring | | | Insulating material | Polyamide 66 (PA 66) | | | Fire load [MJ] | 0.906 | MJ | | Weight [g] | 44.455 | g | | Width | 96.3 mm / 3.791 Inch | | | Height | 24.4 mm / 0.961 Inch | | | Depth | 40.8 mm / 1.606 Inch | | | Pin spacing from [mm] | 5 | mm | | Mounting type | Snap-in | | |
.

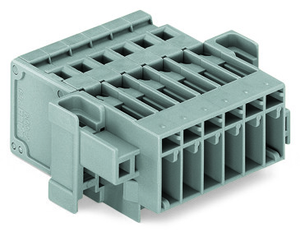

The WAGO 769 X-COM series male connector features snap-in flanges, 15 poles, and a 5mm pin spacing. It supports a nominal cross-section of 4mm² and accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG. The connector is rated for a current of 32A, comes in gray color, and utilizes CAGE CLAMP spring connections for secure and reliable connections. It is designed for snap-in mounting and is equivalent to the model number 769615005000.
