Wago

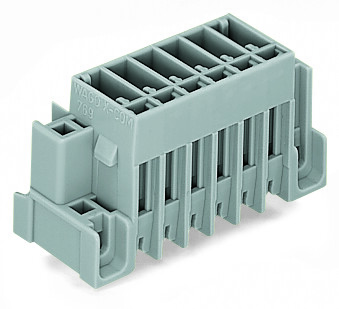

WAGO 769-637/004-000

(No reviews yet) Write a Review
SKU:
769-637/004-000
MPN:
769-637/004-000
Condition:
New
color:
Gray
connector connection type:
For PCB
contact type pluggable connector:
Male connector/plug
country of origin sales organisation germany:
PL
depth:
18.3 mm / 0.72 inch
fire load:
0.194 MJ
flammability class per ul94:
V0
height from the surface:
22.2 mm / 0.874 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
mating direction to the pcb:
90
mismating protection:
No
mounting type:
Feedthrough flange
nominal voltage iii 3:
250 V
packaging type:
Box
pcb contact:
THT
pin spacing:
5 mm / 0.197 inch
pole no:
7
rated current:
32 A
rated surge voltage iii 2:
4 kV
rated surge voltage iii 3:
4 kV
rated voltage iii 2:
500 V
weight:
8.559 g
width:
49.7 mm / 1.957 inch
$4.00

Description

X-COM through-panel PCB connector (male); with straight solder pins; 1 x 1 mm; vertical mounting; 7-pole; pin spacing 5 mm / 0.197 in; with fixing flanges.

The PCB straight THT male header from the WAGO 769 X-COM series features 1mm x 1mm solder pins with 5mm pin spacing and feed-through flanges. It has 7 poles, is gray in color, and supports a rated current of 32A. The header includes Spring-cage (push-in) connections and is in a straight shape, equivalent to the model 769637004000.
