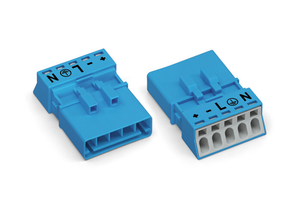

WAGO 770-1115 Plug; 5-pole; 4.00 mm²; blue
Wago
$4.81
Plug; without strain relief housing; 5-pole; 100% protected against mismating; 2-conductor connection; Pin spacing 10 mm / 0.394 in.
The WAGO component equivalent to 7701115 is a specific type of electrical connector or terminal block used in various industrial and commercial applications. It is designed to provide secure and reliable connections for electrical wiring, ensuring efficient and safe transmission of electrical signals. This component is known for its ease of use, durability, and compatibility with a wide range of electrical systems, making it a popular choice among professionals in the field.
WINSTA® MIDI male connector/plug with protection type IP20
Use effective pluggable connections in place of laborious screw connections: With the WINSTA® MIDI male connector/plug rated current 25 A. The pluggable installation connectors with spring pressure connection technology function without screw connections. They allow fast, efficient, error-free installation in a large number of applications. The coding options reduce installation errors, allowing for fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). I coding in blue is used to identify WINSTA® MIDI pluggable installation connectors, which are used primarily in building automation for controlling lighting. This pluggable installation connector is used for electrical currents up to 25 A. Thus the product is also suitable for high power loads. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is found in a broad range of individual products you can use for quick, easy, secure, tailored installation.
WINSTA® MIDI solutions for electrical installation – protected against mismating and maintenance-free
The WINSTA® Pluggable Connection System is tailored to meet the very strict requirements of building installation. Because it is pluggable, it is more efficient, more reliable, and error-free. Pre-assembly reduces installation times and errors at the construction site. Now you can also reduce installation expenses without compromising safety and quality: The WINSTA® MIDI pluggable installation connectors with marking reduce the need for servicing and prevent unnecessary downtime.
- effective protection against mismating
- for automation controllers
- with I coding for controlling light (DALI standard)
- flexible installation to save space
- rapid, structured electrical installation
- actuation type:
- Operating tool || Push-in
- application:
- DALI, Lighting Management
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- I
- color:
- Blue
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Male connector/plug
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 37.5 mm / 1.476 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 mm / 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm / 20 16 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm / 20 14 AWG
- fire load:
- 0.301 MJ
- height:
- 12.9 mm / 0.508 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Can be retrofitted
- locking of plug in connection:
- Locking lever
- marking:
- N L DA- DA+
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 1.5 4 mm / 16 12 AWG
- stranded conductor:
- 0.5 2.5 mm / 20 14 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 15.696 g
- width:
- 50 mm / 1.969 inch
