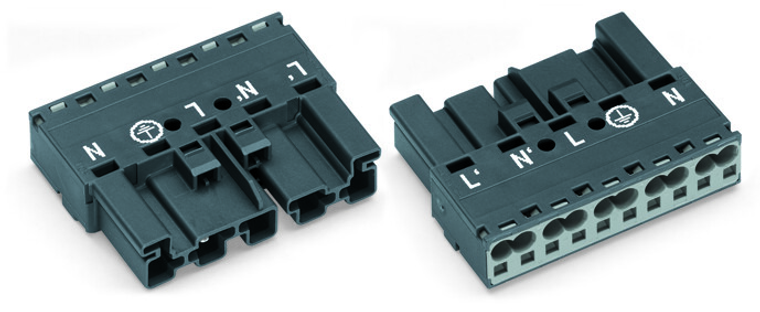

WAGO 770-1175

(No reviews yet) Write a Review

Write a Review

WAGO 770-1175

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

770-1175

UPC:

MPN:

770-1175

Condition:

New

actuation type:

Operating tool || Push-in

application:

Emergency power supply

clamping spring material:

Chrome nickel spring steel (CrNi)

coding:

L

color:

Dark gray

conductor entry direction to mating direction:

0

connection technology:

Push-in CAGE CLAMP

connector connection type:

For conductor

contact material:

Copper or copper alloy (surface-treated)

contact type pluggable connector:

Male connector/plug

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

DE

depth:

37.5 mm / 1.476 inch

fine stranded conductor:

0.5 4 mm / 20 12 AWG

fine stranded conductor with ferrule push in termination:

1.5 mm / 16 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm / 20 16 AWG

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm / 20 14 AWG

fire load:

0.332 MJ

height:

12.9 mm / 0.508 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

Can be retrofitted

locking of plug in connection:

Locking lever

marking:

N L N' L'

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal cross section:

4 mm

nominal voltage iii 3:

400 V

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

10 mm / 0.394 inch

pole no:

5

processing temperature:

-5 +40 C

protection class:

IP20: When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

rated current:

25 A

rated current ul 1977:

23 A

rated surge voltage iii 3:

6 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

Locked: > 80 N

solid conductor:

0.5 4 mm / 20 12 AWG

solid conductor push in termination:

1.5 4 mm / 16 12 AWG

stranded conductor:

0.5 2.5 mm / 20 14 AWG

strip length:

9 mm / 0.35 inch

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

16.734 g

width:

50 mm / 1.969 inch
