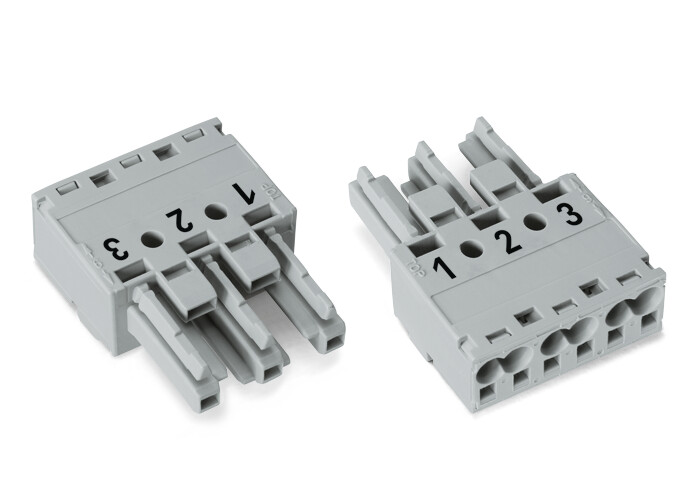

WAGO 770-243/081-000 Socket 3-Pole, Gray
Wago
$3.75
Socket; without strain relief housing; 3-pole; 100% protected against mismating; 2-conductor connection; Pin spacing 10 mm / 0.394 in.
The WAGO component equivalent to 770243081000 is a specific part used in electrical and electronic applications. It is designed to provide reliable and efficient connectivity solutions, often utilized in automation, control systems, and various industrial applications. This component ensures secure and stable connections, contributing to the overall performance and safety of the systems in which it is integrated.
- actuation type:
- Operating tool || Push-in
- application:
- Measurement and regulation technology
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- B
- color:
- Gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Female connector/socket
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 37.5 mm / 1.476 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 mm / 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm / 20 16 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm / 20 14 AWG
- fire load:
- 0.161 MJ
- height:
- 12.9 mm / 0.508 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Can be retrofitted
- locking of plug in connection:
- Locking lever
- marking:
- 1 2 5
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 3
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 1.5 4 mm / 16 12 AWG
- stranded conductor:
- 0.5 2.5 mm / 20 14 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 9.565 g
- width:
- 30 mm / 1.181 inch
