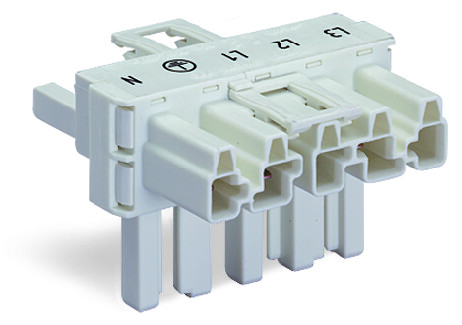

T-distribution connector; 5-pole; Cod. A; 1 input; 2 outputs; 2 locking levers; white.
The WAGO component equivalent to 770671 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to facilitate secure and easy connections in various systems, ensuring optimal performance and safety. It is commonly used in industrial automation, building technology, and other sectors requiring robust electrical connections. The equivalent part maintains the same high standards and specifications as the original, providing a dependable solution for professionals in need of quality components.
- application:
- General mains applications
- coding:
- A
- color:
- White
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 48.9 mm / 1.925 inch
- distributor type:
- T-distribution connector
- fire load:
- 0.481 MJ
- height:
- 35.9 mm / 1.413 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- N L1 L2 L3
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of locking levers:
- 2
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 25.106 g
- width:
- 54 mm / 2.126 inch
