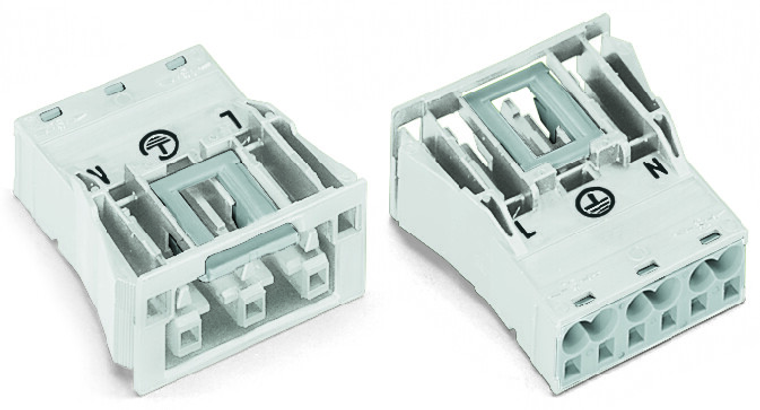

WAGO 770-723 WINSTA® MIDI 3-Pole Snap-In Socket, 250V, 25A, White
Wago
$3.30
WINSTA through-panel socket (female); snap-in; L/G/N marking; 3-pole; white.
The WAGO component equivalent to 770723 is a specific part used in electrical and electronic applications. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various systems. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of applications and meets the necessary standards and specifications required for optimal performance.
- bounce time typ:
- 6 ms
- color:
- Gray
- connection technology:
- Push-in CAGE CLAMP
- contact material relay:
- AgNi 90/10
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 54 mm / 2.126 inch
- dielectric strength control load circuit ac 1 min:
- 5 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 6 ms
- electrical life no resistive load 23 c:
- 30 x 103 switching operations
- fine stranded conductor:
- 0.34 2.5 mm / 22 14 AWG
- fire load:
- 0.920 MJ
- height:
- 86 mm / 3.386 inch
- input voltage range:
- 10 %
- inrush current resistive max:
- (AC) 30 A / 4 s
- limiting continuous current:
- 16 A
- mechanical life:
- 30 x 106 switching operations
- mounting type:
- DIN-35 rail
- nominal input current at un:
- 19 mA
- nominal input voltage un:
- DC 24 V
- note:
- Reinforced insulation between coil and contactsTo protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- number of changeover switchover contacts:
- 1
- packaging type:
- Box
- pollution degree:
- 3
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- pull in time typ:
- 8 ms
- rated surge voltage:
- 4 kV
- rated voltage:
- 250 V
- recommended minimum load:
- 12 V / 10 mA
- safety information 1:
- A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
- solid conductor:
- 0.34 2.5 mm / 22 14 AWG
- standards specifications:
- EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508 (max. 10 A)
- status indicator:
- Red LED
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air operating temperature for ul:
- -40 50 C
- surrounding air temperature operation at un:
- -40 70 C
- surrounding air temperature storage:
- -40 70 C
- switching capacity:
- AC-15: 6 A / AC 250 V: DC-13: 2 A / DC 24 V
- switching frequency with without load max:
- 6 min-1 / 1200 min-1
- switching power resistive max:
- AC 4000 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- wago basic relay:
- 788-154
- weight:
- 45.918 g
- width:
- 15 mm / 0.591 inch
