Wago 770-724

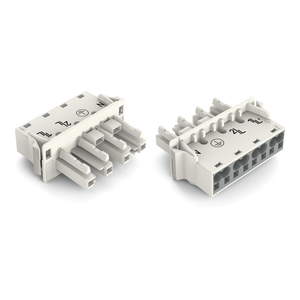

WAGO 770-724 Snap-In Socket, 4-Pole, 25A, IP20

Wago
SKU:
770-724
Availability:
Factory stock
$4.40
Condition:
New
Current Stock:
Description
Description Socket; Snap-in version; 4-pole; 100% protected against mismating
Remarks Note:

All connectors for fixed installations (snap-in versions for lighting fixtures or devices, female locking latch all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).


All WINSTA components are 100% protected against mismating in terms of:

a.) plugging different number of poles

b.) plugging when turned by 180

c.) plugging when laterally staggered

d.) plugging one pole


Note on Continuous Service Temperature:

-35 C +85 C

PVC cable for temperatures 70 C (including halogen-free)

Insulating parts for temperatures 105 C




Item properties

Miscellaneous

Name Value Unit
No. of poles  4
Pin spacing  10 mm (0.394 in)
Total number of connection points  8
Total number of potentials  4
Potential marking  N 2|L 1|L'
Color  white
Coding  A
Rated voltage (III / 3) [V]  400  V
Rated impulse voltage (III / 3) [kV]  6  kV
Rated current [A]  25  A
Legend for ratings  (III / 3) Overvoltage category III / Pollution degree 3
Connection technology  Push-in CAGE CLAMP
Number of connection points connector  2
Actuation type  Operating tool
Nominal cross section  4 mm / 12 AWG
Solid conductor  0.5 4 mm / 20 12 AWG
Solid conductor, push-in termination  1.5 4 mm / 16 12 AWG
Stranded conductor  0.5 2.5 mm / 20 14 AWG
Fine-stranded conductor  0.5 4 mm / 20 12 AWG
Fine-stranded conductor with ferrule with plastic collar  0.25 1.5 mm / 20 16 AWG
Fine-stranded conductor with ferrule without plastic collar  0.25 2.5 mm / 20 14 AWG
Fine-stranded conductor with ferrule, push-in termination fr  1.5 mm / 16 AWG
Strip length  9 mm / 0.35 Inch
Mating force of a plug-in connection  approx. 20 70 N (depending on pole number)
Unmating force of a plug-in connection  when unlocked: approx. 20 70 N (depending on pole number)
Retention force of a plug-in connection  when locked: > 80N
Insulating material  Polyamide 66 (PA 66)
Flammability class per UL94  V0
Clamping spring material  Chrome nickel spring steel (CrNi)
Contact material  Copper or copper alloy, surface-treated
Processing temperature  -5 C ... +40 C
Fire load [MJ]  0.198  MJ
Weight [g]  12.21  g
Width  45.5 mm / 1.791 Inch
Height  18.5 mm / 0.728 Inch
Depth  36 mm / 1.417 Inch
Pin spacing from [mm]  10  mm
Mounting type  Snap-in
Marking  N 2|L 1|L'
.

The WAGO component is a versatile and reliable electrical connector used in various applications for connecting wires. It is known for its ease of use, allowing for quick and secure connections without the need for tools. The component features a compact design, making it suitable for use in tight spaces, and it ensures a stable and maintenance-free connection. WAGO connectors are widely used in industrial, commercial, and residential electrical installations, offering a high level of safety and efficiency.

Additional Information
actuation type:
Operating tool || Push-in
application:
General mains applications
clamping spring material:
Chrome nickel spring steel (CrNi)
coding:
A
color:
White
conductor entry direction to mating direction:
0
connection technology:
Push-in CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper or copper alloy (surface-treated)
contact type pluggable connector:
Female connector/socket
continuous operating temperature:
-35 +85 C
country of origin sales organisation germany:
DE
depth:
36 mm / 1.417 inch
fine stranded conductor:
0.5 4 mm / 20 12 AWG
fine stranded conductor with ferrule push in termination:
1.5 mm / 16 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm / 20 16 AWG
fine stranded conductor with uninsulated ferrule:
0.25 2.5 mm / 20 14 AWG
fire load:
0.198 MJ
height:
18.5 mm / 0.728 inch
housing sheet thickness:
0.5 2 mm / 0.02 0.079 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
locking lever:
Yes
locking of plug in connection:
Locking lever
marking:
N 2/L 1/L'
mating force of a plug in connection:
Approx. 20 70 N (depending on pole number)
mismating protection:
Yes
mounting type:
Snap-in
nominal cross section:
4 mm
nominal voltage iii 3:
400 V
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
note on mismating protection:
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
10 mm / 0.394 inch
pole no:
4
processing temperature:
-5 +40 C
protection class:
IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
rated current:
25 A
rated current ul 1977:
23 A
rated surge voltage iii 3:
6 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
Locked: > 80 N
solid conductor:
0.5 4 mm / 20 12 AWG
solid conductor push in termination:
1.5 4 mm / 16 12 AWG
stranded conductor:
0.5 2.5 mm / 20 14 AWG
strip length:
9 mm / 0.35 inch
unmating force of a plug in connection:
Unlocked: approx. 20 70 N (depending on pole number)
weight:
12.210 g
width:
45.5 mm / 1.791 inch
