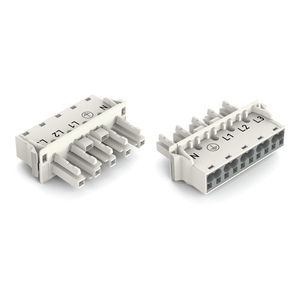

WINSTA through-panel socket (female); snap-in; N/G/L1/L2/L3 marking; 5-pole; white.
The WAGO component equivalent to 770725 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to facilitate secure and efficient connections in various systems, ensuring optimal performance and safety. It is commonly used in industrial automation, building technology, and other sectors requiring robust electrical connections. The equivalent part maintains the same high standards and specifications as the original, providing a dependable solution for professionals in need of a replacement or an alternative.
- actuation type:
- Operating tool || Push-in
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- color:
- White
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Female connector/socket
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 36 mm / 1.417 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 mm / 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm / 20 16 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm / 20 14 AWG
- fire load:
- 0.353 MJ
- height:
- 18.5 mm / 0.728 inch
- housing sheet thickness:
- 0.5 2 mm / 0.02 0.079 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- N L1 L2 L3
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- mounting type:
- Snap-in
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 1.5 4 mm / 16 12 AWG
- stranded conductor:
- 0.5 2.5 mm / 20 14 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 18.790 g
- width:
- 55.5 mm / 2.185 inch
