Wago

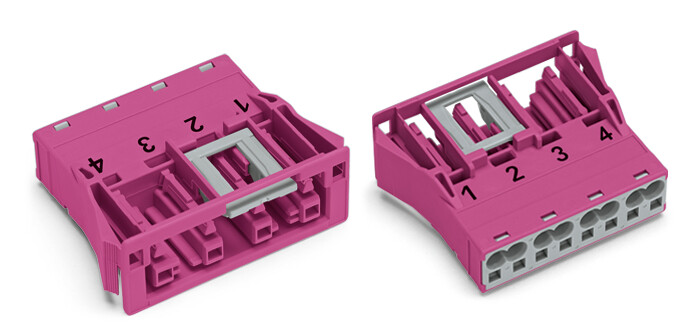

WAGO 770-784

SKU:

770-784

UPC:

MPN:

770-784

Condition:

New

actuation type:

Operating tool || Push-in

application:

Measurement and regulation technology

clamping spring material:

Chrome nickel spring steel (CrNi)

coding:

B

color:

Pink

conductor entry direction to mating direction:

0

connection technology:

Push-in CAGE CLAMP«

connector connection type:

For conductor

contact material:

Copper or copper alloy (surface-treated)

contact type pluggable connector:

Female connector/socket

continuous operating temperature:

-35 ª +85 C

country of origin sales organisation germany:

DE

depth:

36 mm / 1.417 inch

fine stranded conductor:

0.5 ƒƒ‡ª 4 mm / 20 ƒƒ‡ª 12 AWG

fine stranded conductor with ferrule push in termination:

1.5 mm / 16 AWG

fine stranded conductor with insulated ferrule:

0.25 ƒƒ‡ª 1.5 mm / 20 ƒƒ‡ª 16 AWG

fine stranded conductor with uninsulated ferrule:

0.25 ƒƒ‡ª 2.5 mm / 20 ƒƒ‡ª 14 AWG

fire load:

0.301 MJ

height:

18.5 mm / 0.728 inch

housing sheet thickness:

0.5 ƒƒ‡ª 2 mm / 0.02 ƒƒ‡ª 0.079 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 3

locking lever:

Yes

locking of plug in connection:

Locking lever

marking:

1 2 3 4

mating force of a plug in connection:

Approx. 20 ƒƒ‡ª 70 N (depending on pole number)

mismating protection:

Yes

mounting type:

Snap-in

nominal cross section:

4 mm

nominal voltage iii 3:

400 V

note on continuous operating temperature:

Insulating parts for temperatures ƒƒ«ƒƒ± 105 C

note on mismating protection:

All WINSTA« components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 ƒƒ‡c.) plugging while laterally staggeredd.) plugging one pole

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

10 mm / 0.394 inch

pole no:

4

processing temperature:

-5 ƒƒ‡ª +40 C

protection class:

IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

rated current:

25 A

rated current ul 1977:

23 A

rated surge voltage iii 3:

6 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

Locked: > 80 N

solid conductor:

0.5 ƒƒ‡ª 4 mm / 20 ƒƒ‡ª 12 AWG

solid conductor push in termination:

1.5 ƒƒ‡ª 4 mm / 16 ƒƒ‡ª 12 AWG

stranded conductor:

0.5 ƒƒ‡ª 2.5 mm / 20 ƒƒ‡ª 14 AWG

strip length:

9 mm / 0.35 inch

unmating force of a plug in connection:

Unlocked: approx. 20 ƒƒ‡ª 70 N (depending on pole number)

weight:

15.630 g

width:

45.5 mm / 1.791 inch
