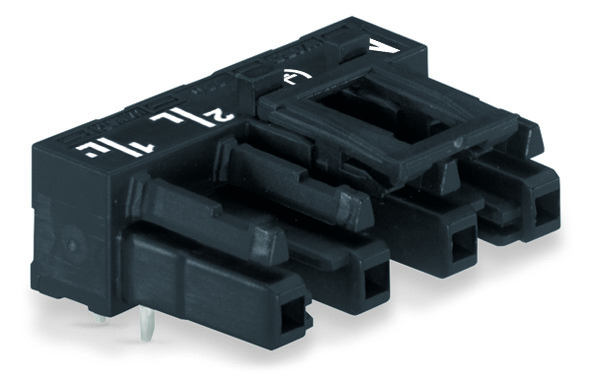

WAGO 770-804/011-000 Socket for PCBs Angled 4-Pole, Black
Wago
$3.04
Socket for PCBs; angled; 4-pole; Cod. A; black.
The WAGO component equivalent to 770804011000 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide reliable and secure connections for electrical wiring, ensuring efficient and safe operation of electrical systems. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the field.
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- color:
- Black
- connector connection type:
- For PCB
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Female connector/socket
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- PL
- depth:
- 26 mm / 1.024 inch
- design:
- Angled
- drilled hole diameter with tolerance:
- 1.5 (-0.1 +0.1) mm
- fire load:
- 0.158 MJ
- height:
- 18.1 mm / 0.713 inch
- height from the surface:
- 14.6 mm / 0.575 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- N 2/L 1/L'
- mating direction to the pcb:
- 0
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 4
- processing temperature:
- -5 +40 C
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solder pin arrangement:
- 2 in-line solder pins/pole
- solder pin dimensions:
- 1 x 0.8 mm
- solder pin length:
- 3.5 mm
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 8.570 g
- width:
- 37 mm / 1.457 inch
