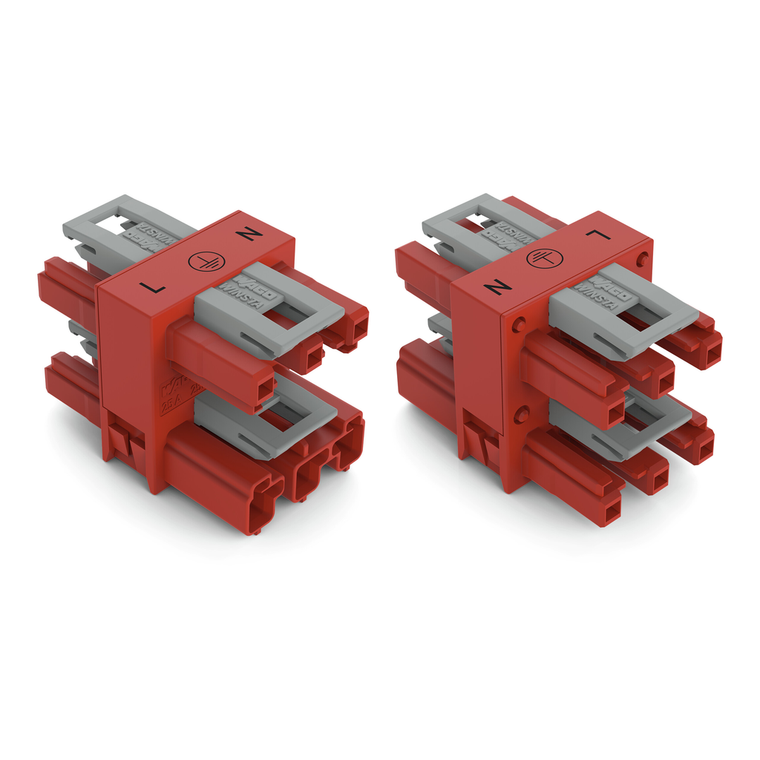

WAGO 770-907 3-Way Distribution Connector, 3-Pole, Red
Wago
$11.63
Distribution connector; 1 x plug / 3 x socket; 3-pole; 100% protected against mismating; pluggable; 3-way
- rotected against mismating and maintenance-free
- Additional variable coding is possible
The WAGO component equivalent to 770907 is a specific type of electrical connector or module used in various industrial and automation applications. It is designed to provide reliable and efficient connections for electrical circuits, ensuring secure and stable performance. This component is part of WAGO's extensive range of products known for their quality and innovation in electrical interconnection and automation technology.
- application:
- EDV (UPS)
- coding:
- P
- color:
- Red
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 46 mm / 1.811 inch
- distributor type:
- Distribution connector, 3-way,
- fire load:
- 0.421 MJ
- height:
- 32.7 mm / 1.287 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- L N
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of locking levers:
- 4
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 3
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 26.000 g
- width:
- 30 mm / 1.181 inch
