WAGO 773-496 Pack of 50
Wago

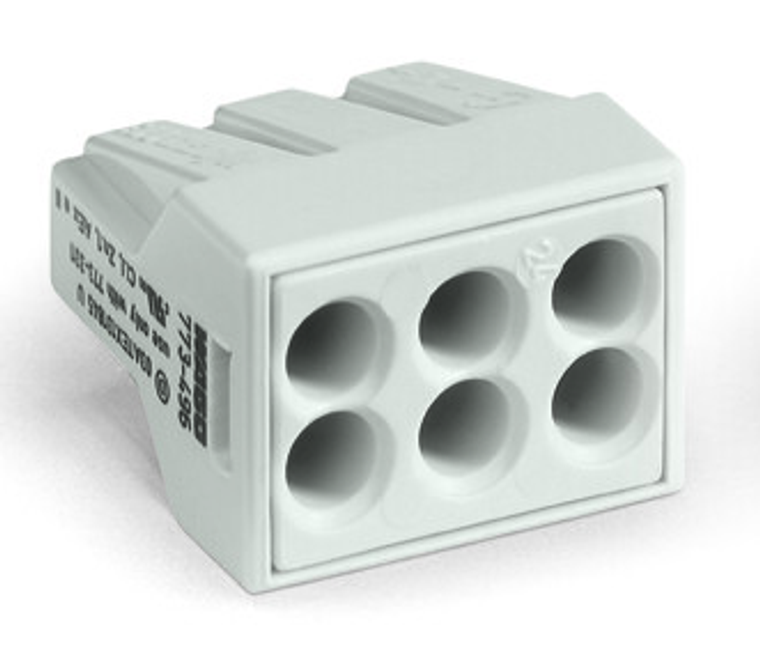

PUSH WIRE connector for junction boxes; 6-conductor; suitable for Ex ee II applications; light gray housing; light gray face.
The 6-wire connector from WAGO's 773 series is designed for Ex e II applications and accommodates wire sizes from 0.75mm² to 2.5mm² or #16AWG to #12AWG. It has a rated current of 24A for Ex e II environments, features PUSH WIRE spring connections, and comes in a light gray color. This connector is equivalent to the 773496 model.
- actuation type:
- Push-in
- connectable conductor materials note:
- WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically destroys the oxide film during
- color:
- Light gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- PUSH WIRE
- continuous operating temperature:
- 105 C
- country of origin sales organisation germany:
- CN
- cover color:
- Light gray
- depth:
- 19.5 mm / 0.768 inch
- fire load:
- 0.077 MJ
- flammability class per ul94:
- V2
- height:
- 13.1 mm / 0.516 inch
- packaging type:
- Box
- rated current ex e ii:
- 24 A
- rated voltage en ex e ii:
- 550 V
- ratings per:
- EN 60079
- safety information 2:
- To be used only in conjunction with a mounting carrier (773331).
- solid conductor:
- 0.75 2.5 mm / 18 14 AWG
- stranded conductor:
- 0.75 2.5 mm / 16 12 AWG
- strip length:
- 12 mm / 0.47 inch
- surrounding air temperature operation:
- 60 C
- weight:
- 3.597 g
- width:
- 18.8 mm / 0.74 inch
- wiring direction:
- Side-entry wiring
