Wago

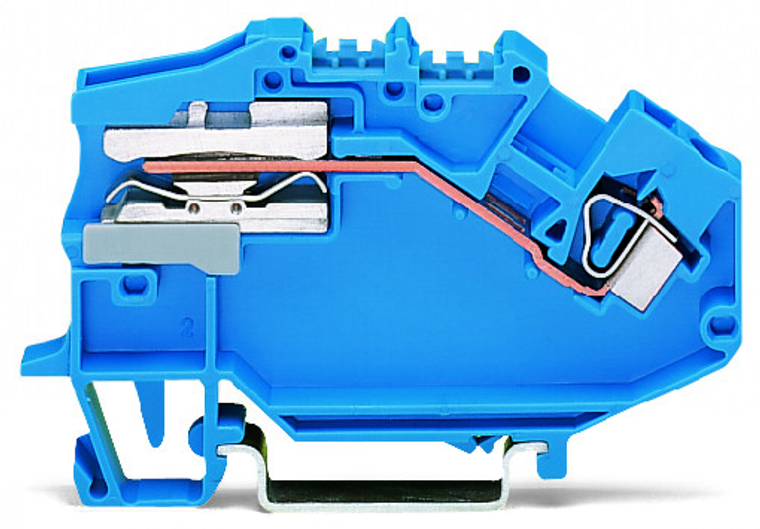

WAGO 781-613

SKU:

781-613

UPC:

MPN:

781-613

Condition:

New

actuation type:

Operating tool

color:

Blue

connectable conductor materials:

Copper || Aluminum

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

PL

depth from upper edge of din rail:

43.5 mm / 1.713 inch

design:

Angled

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.002 MJ

flammability class per ul94:

V0

height:

77 mm / 3.031 inch

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

400 V

note:

Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically

packaging type:

Box

rated current:

32 A

rated surge voltage iii 3:

6 kV

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

16.384 g

width:

6 mm / 0.236 inch

wiring direction:

Front-entry wiring
