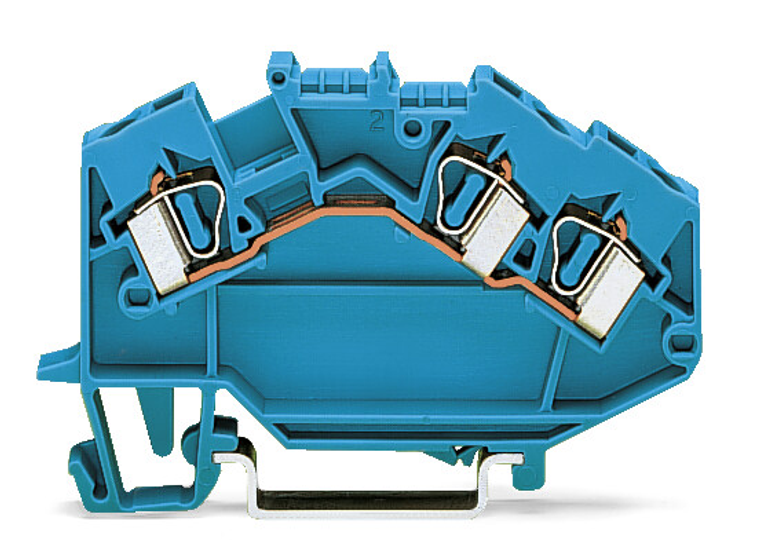

WAGO 781-651 3-Conductor Through Terminal Block, 4 mm², Blue
Wago
$4.00
Feedthrough terminal block; angled; rail mount; 3-conductor; 6 mm wide; blue.
The WAGO 781 TOPJOB Classic series neutral-through terminal block is a blue, single-deck terminal block with a center marking slot, suitable for Ex I applications. It features a neutral-through pole (N) with three wire connections (one clamp and two clamps) for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block is rated for a current of 32A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 6mm, and is equivalent to model 781651.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Blue
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 43.5 mm / 1.713 inch
- design:
- Angled
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.207 MJ
- flammability class per ul94:
- V0
- height:
- 77 mm / 3.031 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current:
- 32 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 11.700 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
