Wago

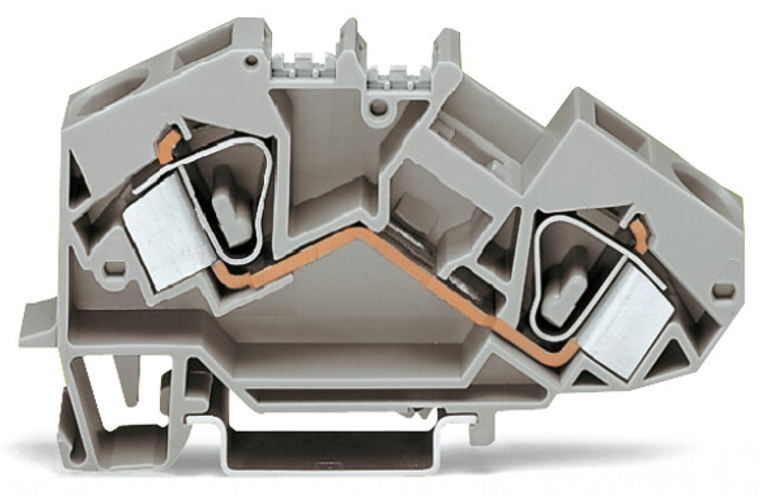

WAGO 783-601

SKU:

783-601

UPC:

MPN:

783-601

Condition:

New

actuation type:

Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

43.5 mm / 1.713 inch

design:

Angled

fine stranded conductor:

0.2 16 mm / 24 6 AWG

fire load:

0.474 MJ

flammability class per ul94:

V0

height:

88.5 mm / 3.484 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Center marking

mounting type:

DIN-35 rail

nominal voltage iii 3:

1000 V

packaging type:

Box

rated current:

76 A

rated surge voltage iii 3:

8 kV

ratings per:

IEC/EN 60947-7-1

solid conductor:

0.2 16 mm / 24 6 AWG

strip length:

16 17 mm / 0.63 0.67 inch

weight:

31.694 g

width:

12 mm / 0.472 inch

wiring direction:

Front-entry wiring
