WAGO 784-607
Wago
$12.98

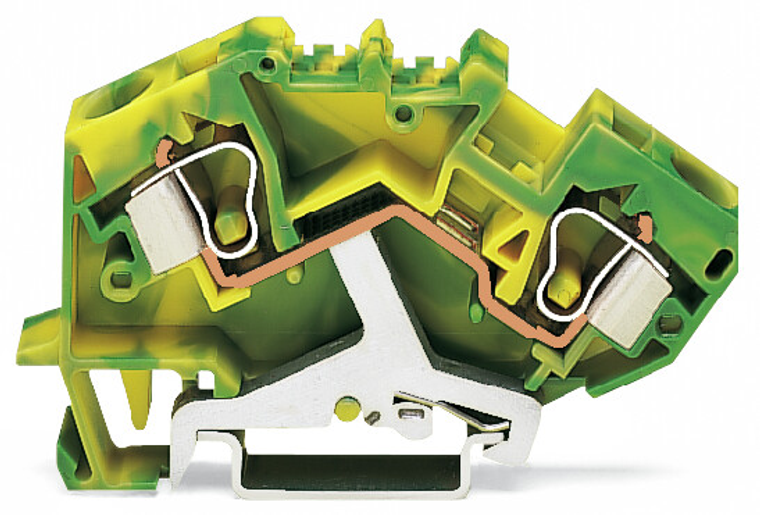

2-conductor ground terminal block10 mm, green-yellow.
The WAGO 784 TOPJOB Classic series ground/earthing terminal block is a green-yellow, single-deck unit with a center marking slot, designed for grounding/protective-earth applications. It accommodates two wires (one clamp each) ranging from 0.2mm² to 10mm² or #24AWG to #8AWG, utilizing CAGE CLAMP spring connections. The terminal block mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 10mm, equivalent to model 784607.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 43.5 mm / 1.713 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 10 mm / 24 8 AWG
- fine stranded conductor 2:
- 0.2 16 mm / 24 6 AWG
- fire load:
- 0.342 MJ
- flammability class per ul94:
- V0
- height:
- 82.5 mm / 3.248 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.2 10 mm / 24 8 AWG
- solid conductor 2:
- 0.2 16 mm / 24 6 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 33.660 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
