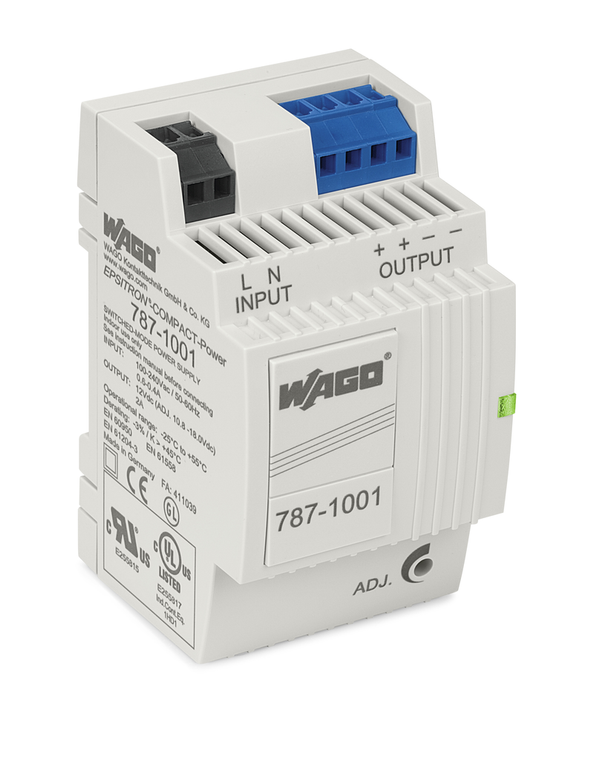

WAGO 787-1001

SKU:

787-1001

UPC:

MPN:

787-1001

Condition:

New

conformity marking:

CE

connection technology:

CAGE CLAMP

connection type 1:

Input/output

control deviation:

¤ 2 %

country of origin sales organisation germany:

CN

current limitation:

1.1 x Io nom (typ.)

default setting:

DC 12 V

depth:

59 mm / 2.323 inch

depth from upper edge of din rail:

55 mm / 2.165 inch

derating:

-3 %/K (> 45 C)

discharge current:

¤ 1 mA

efficiency typ:

0.8

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

89 mm / 3.504 inch

input current ii:

¤ 0.4 A (230 VAC): ¤ 0.6 A (110 VAC)

input voltage derating:

Io ¤ 1.5 A (< 100 VAC)

input voltage range:

AC 85 264 V: DC 120 373 V

inrush current:

¤ 30 A (NTC)

internal fuse:

T 2 A / 250 VAC

isolation voltage pri sec:

DC 4.242 kV

mains failure hold up time:

80 ms (230 VAC): 10 ms (110 VAC)

mounting type:

DIN-35 rail

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

1 x AC 100 240 V

nominal mains frequency range:

44 66 Hz: 0 Hz

nominal output current io nom:

2 A (12 VDC): 1.4 A (12 VDC: in any mounting position): 0.75 A (18 VDC)

nominal output power:

24 W

nominal output voltage uo nom:

DC 12 V (SELV)

open circuit proof:

Yes

operation status indicator:

Green LED (Uo)

output voltage range:

DC 10.5 18 V (adjustable)

overload behavior:

Constant current

overvoltage category:

II

overvoltage protection secondary:

¤ 30 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

Yes

phases:

1

pollution degree:

2

power factor correction pfc:

Passive

power loss max pl max:

6 W (100 VAC / 12 VDC: 2 A)

power loss pl:

¤ 2.6 W (230 VAC: No load): ¤ 6 W (230 VAC: Nominal load)

protection class:

II

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: 6 A (C characteristic), 10 A (B characteristic) or higher

relative humidity:

5 96 % (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

¤ 100 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 25 V

series operation:

Yes

short circuit protected:

Yes

signaling:

1 x Status indication LED (green)

solid conductor:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 60950-1 || UL 508 || DNV GL

strip length:

6 7 mm / 0.24 0.28 inch

surrounding air operating temperature for ul:

-25 55 C

surrounding air temperature operation:

-25 60 C (Device starts at 40 C (type-tested))

surrounding air temperature storage:

-25 80 C

transient suppression primary:

Varistor

wago connector:

WAGO 740 Series

weight:

180.000 g

width:

54 mm / 2.126 inch
