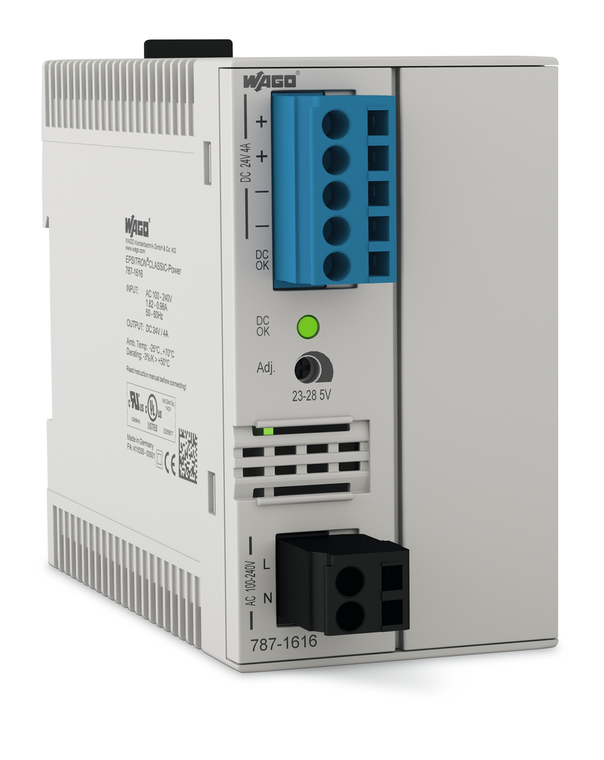

WAGO 787-1616

SKU:

787-1616

UPC:

MPN:

787-1616

Condition:

New

conformity marking:

CE

connection technology:

CAGE CLAMP

connection type 1:

Input/output/signaling

control deviation:

¤ 1 %

country of origin sales organisation germany:

DE

current limitation:

1.1 x Io nom (typ.)

default setting:

DC 24 V

depth from upper edge of din rail:

119.5 mm / 4.705 inch

derating:

-3 %/K (> 50 C)

discharge current:

¤ 0.25 mA

efficiency typ:

0.89

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.000 MJ

height:

90 mm / 3.543 inch

input current ii:

¤ 0.98 A (240 VAC): ¤ 1.82 A (100 VAC)

input voltage derating:

-2.5 %/V (< 95 VAC)

input voltage range:

AC 85 264 V: DC 120 372 V

inrush current:

¤ 30 A

internal fuse:

T 4 A / 250 VAC

isolation voltage pri sec:

DC 4.242 kV

mains failure hold up time:

80 ms (230 VAC): 15 ms (100 VAC)

mounting type:

DIN-35 rail

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

1 x AC 100 240 V

nominal mains frequency range:

44 66 Hz: 0 Hz

nominal output current io nom:

4 A (24 VDC): 4.2 A (< 40 C)

nominal output power:

96 W

nominal output voltage uo nom:

DC 24 V (SELV)

open circuit proof:

Yes

operation status indicator:

Green LED (Uo)

output voltage range:

DC 23 28.5 V (adjustable)

overload behavior:

Constant current

overvoltage category:

II

overvoltage protection secondary:

Internal protective circuit || ¤ 40 VDC (in the event of a fault)

packaging type:

Box

parallel operation:

Yes

phases:

1

pollution degree:

2

power factor correction pfc:

Passive

power loss max pl max:

15 W (100 VAC / 24 VDC: 4 A)

power loss pl:

¤ 1 W (230 VAC: No load): ¤ 12.4 W (230 VAC: Nominal load)

protection class:

II

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: 6 A, 10 A, 16 A: Tripping characteristic: B or C

relative humidity:

5 96 % (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

¤ 20 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 35 V

series operation:

Yes

short circuit protected:

Yes

signaling:

1 x LED DC OK (green) || 1 x Active signal output DC OK (24 VDC: 20 mA)

solid conductor:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 61010-1 || EN 61010-2-201 || EN 61204-3 || EN 60335-1 || UL 60950-1 || UL 508 || GL

strip length:

8 9 mm / 0.31 0.35 inch

surrounding air temperature operation:

-25 70 C (Device starts at 40 C (type-tested))

surrounding air temperature storage:

-25 85 C

transient suppression primary:

Varistor

wago connector:

WAGO 721 Series

weight:

384.000 g

width:

52 mm / 2.047 inch
