SMPSEco 1-ph
- Natural convection cooling when horizontally mounted
- Enclosed for use in control cabinets
- Fast and tool-free termination via lever-actuated terminal blocks
- Bounce-free switching signal (DC OK) via optocoupler
- Parallel operation
- Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204

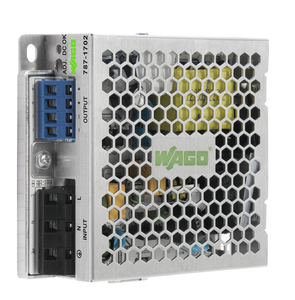

The WAGO Eco switch-mode AC/DC power supply unit (SMPS PSU) features a 24Vdc (SELV) output with a capacity of 40A and 960W. It supports an input voltage range of 90-264Vac or 130-373Vdc, accommodating various single-phase AC and DC inputs. The unit includes a DC-OK relay contact output and utilizes CAGE CLAMP spring connections for secure wiring. Designed for DIN-35 rail mounting with a 170mm width, it is rated for operation in ambient temperatures from -25°C to +70°C and has an IP20 protection rating. This model is equivalent to the 787736.
- conformity marking:
- CE
- connection technology:
- Push-in CAGE CLAMP
- connection technology 2:
- Push-in CAGE CLAMP
- connection type 1:
- Input/signaling
- connection type 2:
- Output
- control deviation:
- ¤ 1 %
- country of origin sales organisation germany:
- CN
- default setting:
- DC 24 V
- depth from upper edge of din rail:
- 150 mm / 5.91 inch
- derating:
- -2.66 %/K (> 55 C)
- discharge current:
- ¤ 2 mA
- efficiency typ:
- 0.9
- fine stranded conductor:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor 2:
- 1.5 16 mm / 16 6 AWG
- fire load:
- 0.000 MJ
- height:
- 136 mm / 5.354 inch
- input current ii:
- ¤ 6 A (230 VAC): ¤ 12 A (115 VAC)
- input voltage derating:
- -2 %/V (< 100 VAC)
- input voltage range:
- AC 90 264 V: DC 130 373 V
- inrush current:
- ¤ 30 A
- internal fuse:
- T 20 A / 250 VAC
- isolation voltage pri gnd:
- DC 2.2 kV
- isolation voltage pri sec:
- DC 4.242 kV
- isolation voltage sec gnd:
- DC 0.7 kV
- isolation voltage sec signal:
- DC 0.7 kV
- mains failure hold up time:
- 17 ms (230 VAC)
- mounting type:
- DIN-35 rail
- mtbf:
- > 250,000 h (per IEC 61709)
- nominal input voltage ui nom:
- 1 x AC 110 240 V
- nominal mains frequency range:
- 47 63 Hz: 0 Hz
- nominal output current io nom:
- 40 A (24 VDC)
- nominal output power:
- 960 W
- nominal output voltage uo nom:
- DC 24 V (SELV)
- open circuit proof:
- Yes
- operation status indicator:
- Green LED (24 VDC OK) || Red LED (overload)
- output voltage range:
- DC 22 28 V (adjustable)
- overload behavior:
- Constant power (in overload range: 1.15 1.4 x Io nom): Shutdown and automatic restart in the event of a short circuit
- overvoltage category:
- II
- packaging type:
- Box
- parallel operation:
- Yes
- phases:
- 1
- pollution degree:
- 2
- power factor:
- 0.94 (230 VAC): 0.98 (115 VAC)
- power factor correction pfc:
- Active
- power loss pl:
- ¤ 107 W (230 VAC: Nominal load)
- protection class:
- I
- protection type:
- IP20 (per EN 60529)
- recommended backup fusing:
- Circuit breaker: 13 A, 16 A, 20 A: Tripping characteristic: B or C
- relative humidity:
- ¤ 95% (no condensation permissible)
- required backup fusing:
- An external DC fuse is required for the DC input voltage.
- residual ripple:
- ¤ 100 mV (Peak-to-peak)
- resistance to reverse feed:
- ¤ DC 29 V
- series operation:
- Yes
- short circuit protected:
- Yes
- signaling:
- 1 x LED DC OK (green) || 1 x Overload LED (red) || 1 x DC OK signal output (optocoupler as make contact: max. 31.2 V: 20 mA)
- solid conductor:
- 0.5 6 mm / 20 10 AWG
- solid conductor 2:
- 1.5 16 mm / 16 6 AWG
- standards specifications:
- EN 62368-1 || EN 61204-3 || EN 61000-6-2 || EN 61000-6-3 || UL 60950-1 || UL 508
- strip length:
- 11 12 mm / 0.43 0.47 inch
- strip length 2:
- 12 13 mm / 0.47 0.51 inch
- surrounding air temperature operation:
- -25 70 C
- surrounding air temperature storage:
- -40 85 C
- transient suppression primary:
- Varistor
- wago connector:
- WAGO 2706 Series
- wago connector 2:
- WAGO 2716 Series
- weight:
- 3500.000 g
- width:
- 170 mm / 6.69 inch
