Wago

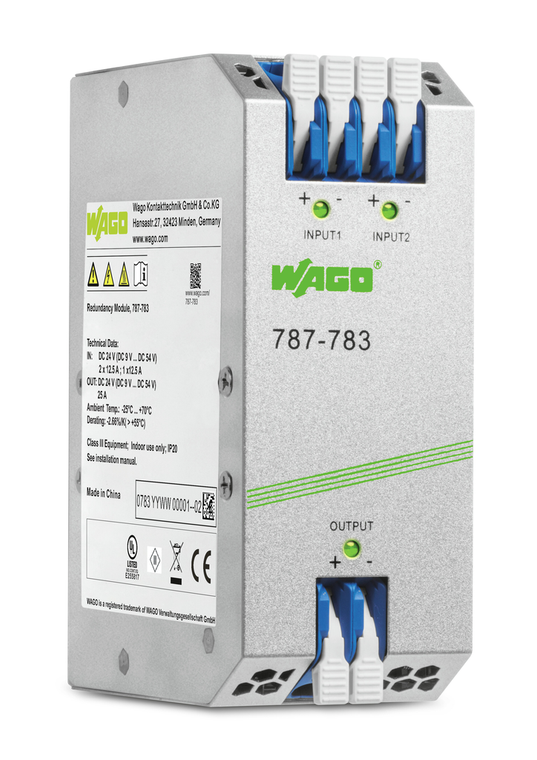

WAGO 787-783/000-040

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 787-783/000-040

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

787-783/000-040

UPC:

MPN:

787-783/000-040

Condition:

New

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

connection type 1:

Input/output

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

92 mm / 3.662 inch

derating:

-2.66 %/K (55 C < Tu ¤ 70 C)

efficiency typ:

0.96

fine stranded conductor:

0.5 6 mm / 20 10 AWG

fire load:

0.000 MJ

height:

130 mm / 5.118 inch

input current ii:

¤ 12.5 A (Per path)

input voltage range:

2 x DC 9 54 V

isolation voltage connectors housing:

DC 0.5 kV

mounting type:

DIN-35 rail

mtbf:

> 10 million h (per IEC 61709)

nominal input voltage ui nom:

2 x DC 24 V

nominal mains frequency range:

0 Hz

nominal output current io nom:

25 A

nominal output power:

600 W

nominal output voltage uo nom:

DC 24 V

open circuit proof:

Yes

operation status indicator:

2 x Green LED (Ui > 7.5 VDC) || 1 x Green LED (Uo > 7.5 VDC)

output power max:

¤ 1350 W

output voltage range:

DC 9 54 V (Ue voltage drop)

overvoltage protection secondary:

No

packaging type:

Box

parallel operation:

Yes

pollution degree:

2

power loss pl:

¤ 19 W (Nominal load)

protection class:

III

protection type:

IP20 (per EN 60529)

relative humidity:

¤ 95% (no condensation permissible)

resistance to reverse feed:

¤ DC 60 V

resistance to shock and vibration:

Shock: 15g (per EN 60068-2-27)

series operation:

No

short circuit protected:

No

signaling:

1 x IN1 LED (green) || 1 x IN2 LED (green) || 1 x OUT LED (green)

solid conductor:

0.5 6 mm / 20 10 AWG

standards specifications:

UL 508 || ATEX || IEC Ex || ANSI/ISA 12.12.01 (Class I Div. 2)

strip length:

11 12 mm / 0.43 0.47 inch

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

voltage drop:

¤ 0.8 V (Input/output)

wago connector:

WAGO 2706 Series

weight:

470.000 g

width:

50 mm / 1.969 inch
