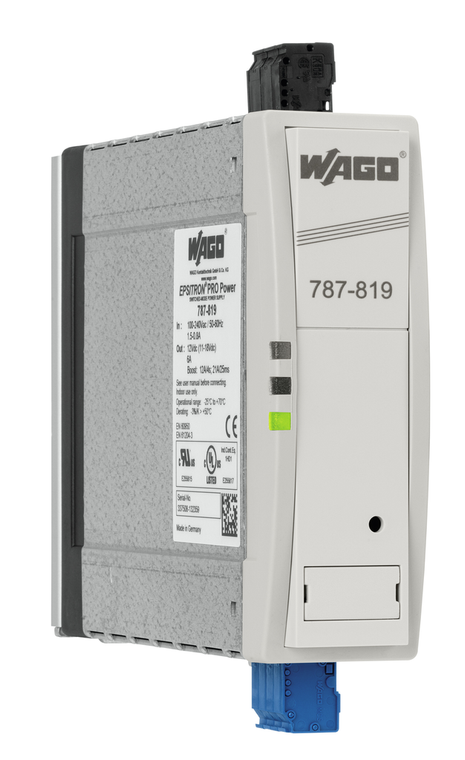

WAGO 787-819

(No reviews yet) Write a Review

Write a Review

WAGO 787-819

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

787-819

UPC:

MPN:

787-819

Condition:

New

conformity marking:

CE

connection technology:

CAGE CLAMP

connection technology 2:

CAGE CLAMP

connection type 1:

Input/output

connection type 2:

Signaling

control deviation:

¤ 1 %

country of origin sales organisation germany:

DE

current limitation:

1.1 x Io nom (typ.)

default setting:

DC 12 V

depth from upper edge of din rail:

163 mm / 6.417 inch

derating:

-3 %/K (> 50 C)

discharge current:

¤ 1 mA

efficiency typ:

0.83

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fine stranded conductor 2:

0.08 0.5 mm / 28 20 AWG

fire load:

0.000 MJ

height:

163 mm / 6.417 inch

input current ii:

¤ 0.51 A (240 VAC: 6 ADC)

input voltage derating:

-5 %/V (< 95 VAC)

input voltage range:

AC 85 264 V: DC 120 373 V

inrush current:

¤ 30 A (Peak)

internal fuse:

T 2 A / 250 VAC

isolation voltage pri gnd:

DC 2.2 kV

isolation voltage pri sec:

DC 4.242 kV

isolation voltage sec gnd:

DC 0.7 kV

mains failure hold up time:

70 ms (230 VAC)

mounting type:

DIN-35 rail

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

1 x AC 100 240 V

nominal mains frequency range:

50 60 Hz: 0 Hz

nominal output current io nom:

6 A (12 VDC)

nominal output power:

72 W

nominal output voltage uo nom:

DC 12 V (SELV)

note dimensions:

Height with connector

open circuit proof:

Yes

operation status indicator:

Green LED (DC OK) || Red LED (error)

output voltage range:

DC 11 18 V (adjustable)

overload behavior:

TopBoost/PowerBoost/Constant current mode

overvoltage category:

II

packaging type:

Box

parallel operation:

Yes

phases:

1

pollution degree:

2

power factor correction pfc:

Passive

power loss pl:

¤ 0.5 W (Standby): ¤ 3 W (No load): ¤ 9.4 W (Nominal load)

powerboost:

DC 12 A (4 s): DC 9 A (8 s)

protection class:

I

protection type:

IP20 (per EN 60529)

recommended backup fusing:

Circuit breaker: 6 A, 10 A, 16 A: Tripping characteristic: B or C

relative humidity:

5 96 % (no condensation permissible)

required backup fusing:

An external DC fuse is required for the DC input voltage.

residual ripple:

¤ 70 mV (Peak-to-peak)

resistance to reverse feed:

¤ DC 25 V

series operation:

Yes

short circuit protected:

Yes

signaling:

1 x LED DC OK (green) || 1 x Error LED (red) || 1 x Stand-by input || 1 x DC OK relay contact (changeover contact)

solid conductor:

0.08 2.5 mm / 28 12 AWG

solid conductor 2:

0.08 0.5 mm / 28 20 AWG

standards specifications:

EN 61010-1 || EN 61010-2-201 || EN 61204-3 || EN 61558-2-16 || UL 60950 || UL 508

strip length:

8 9 mm / 0.31 0.35 inch

strip length 2:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-25 70 C (Device starts at 40 C (type-tested))

surrounding air temperature storage:

-25 85 C

topboost:

DC 21 A (25 ms)

transient suppression primary:

Varistor

wago connector:

WAGO 231 Series

wago connector 2:

WAGO 733 Series

weight:

800.000 g

width:

40 mm / 1.575 inch
