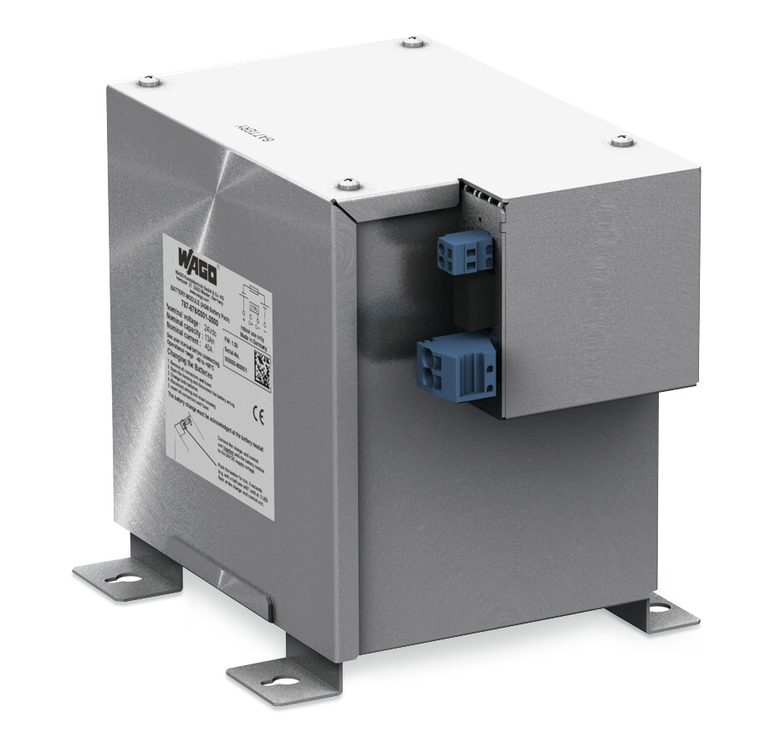

WAGO 787-878/001-3000
Wago
$1,892.00
Pure Lead Battery Module; 24 VDC input voltage; 40 A output current; Capacity: 13 Ah; with battery control.
The Pure Lead battery module from WAGO's 787 series features a 24Vdc output with a 40A capacity and a 13Ah battery storage capacity. It operates with an input voltage of 24Vdc and utilizes Push-in CAGE CLAMP spring connections. The module is designed for wall mounting using screws and has an IP20 protection rating. It is suitable for ambient temperatures ranging from -40°C to +60°C and is equivalent to the model number 7878780013000.
- battery capacity:
- 13 Ah
- charging current:
- ¤ 5 A
- commissioning:
- < 6 months at 30 40 C
- conformity marking:
- CE
- connection technology:
- Push-in CAGE CLAMP
- connection technology 2:
- CAGE CLAMP
- connection type 1:
- Input/output
- connection type 2:
- Battery control
- country of origin sales organisation germany:
- DE
- depth:
- 199.5 mm / 7.854 inch
- end of charge voltage:
- DC 27 V (25 C)
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.000 MJ
- height:
- 186 mm / 7.323 inch
- internal fuse:
- 2 x T 25 A
- line length max:
- 3 m
- mounting type:
- Direct screw connection
- nominal input voltage ui nom:
- DC 24 V
- nominal output current io nom:
- 40 A
- nominal output voltage uo nom:
- DC 24 V
- overvoltage category:
- I
- packaging type:
- Box
- parallel operation:
- Yes
- pollution degree:
- 2
- protection class:
- III
- protection type:
- IP20 (per EN 60529)
- relative humidity:
- 5 80 % (no condensation permissible)
- self consumption:
- 3 % per month at 20 C
- service life typ:
- 15 / 8 / 4 a (20 / 30 / 40 C)
- signaling:
- Battery control (C+: C-)
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- strip length 2:
- 8 9 mm / 0.31 0.35 inch
- surrounding air temperature operation:
- -40 60 C
- surrounding air temperature storage:
- -40 60 C
- wago connector:
- WAGO 831 Series
- wago connector 2:
- WAGO 231 Series
- weight:
- 12300.000 g
- width:
- 217 mm / 8.543 inch
