Basic relay; Nominal input voltage: 24 VAC; 1 changeover contact; Limiting continuous current: 16 A; Module width: 13 mm; Module height: 15 mm.

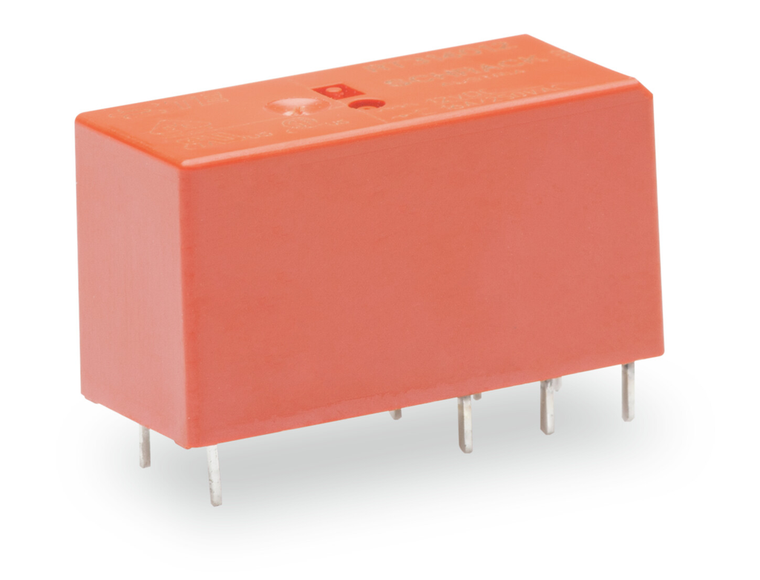

The WAGO 788 series replacement plug-in basic relay is a single-pole (1P) electromechanical relay with a control voltage of 24Vac and a single pole double throw (SPDT) contact configuration. It has a rated current of 16A continuous, 6A at 250Vac (AC-15), and 2A at 24Vdc (DC-13). The relay features push-in connections, plug-in mounting, and an IP40 protection rating. The contacts are made of Silver-Nickel (AgNi 90/10) material, and it is equivalent to the 788170 model.
- bounce time typ:
- 6 ms
- contact material relay:
- AgNi 90/10
- country of origin sales organisation germany:
- AT
- depth:
- 29 mm / 1.142 inch
- dielectric strength control load circuit ac 1 min:
- 5 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 6 ms
- electrical life no resistive load 23 c:
- 30 x 103 switching operations
- fire load:
- 0.000 MJ
- height from the surface:
- 15.7 mm / 0.618 inch
- inrush current resistive max:
- (AC) 30 A / 4 s
- limiting continuous current:
- 16 A
- mechanical life:
- 30 x 106 switching operations
- mounting type:
- Pluggable module
- nominal input voltage un:
- AC 24 V
- number of changeover switchover contacts:
- 1
- packaging type:
- Box
- pull in time typ:
- 8 ms
- recommended minimum load:
- 12 V / 10 mA
- standards specifications:
- EN 61810-1
- surrounding air temperature operation at un:
- -40 70 C
- surrounding air temperature storage:
- -40 85 C
- switching capacity:
- AC-15: 6 A / AC 250 V: DC-13: 2 A / DC 24 V
- switching frequency with without load max:
- 6 min-1 / 1200 min-1
- switching power resistive max:
- AC 4000 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- weight:
- 12.500 g
- width:
- 12.7 mm / 0.5 inch
