Wago

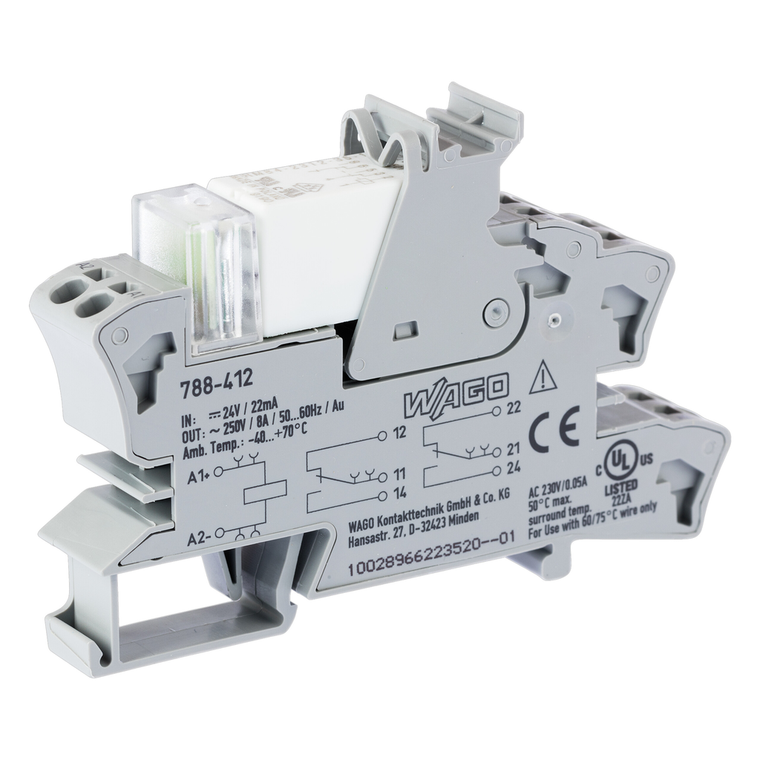

WAGO 788-412

SKU:

788-412

UPC:

MPN:

788-412

Condition:

New

bounce time typ:

6 ms

color:

Gray

connection technology:

Push-in CAGE CLAMP

contact material relay:

AgNi + Au

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

54 mm / 2.126 inch

dielectric strength control load circuit ac 1 min:

5 kVrms

dielectric strength load load circuit ac 1 min:

2.5 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

3 ms

electrical life no resistive load 23 c:

100 x 103 switching operations

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.670 MJ

height:

86 mm / 3.386 inch

input voltage range:

10 %

limiting continuous current:

0.333333333333333

mechanical life:

30 x 106 switching operations

mounting type:

DIN-35 rail

nominal input current at un:

17 mA

nominal input voltage un:

DC 24 V

note:

Reinforced insulation between coil and contactsTo prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing m

number of changeover switchover contacts:

2

packaging type:

Box

pollution degree:

3

processing temperature:

-25 +50 C

protection type:

IP20

pull in time typ:

7 ms

rated surge voltage:

4 kV

rated voltage:

250 V

recommended minimum load:

5 V / 2 mA / 50 mW

safety information 1:

A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

solid conductor:

0.34 2.5 mm / 22 14 AWG

standards specifications:

EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508

status indicator:

Red LED

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air operating temperature for ul:

-40 50 C

surrounding air temperature operation at un:

-40 70 C

surrounding air temperature storage:

-40 70 C

switching capacity:

AC-15: 3 A / AC 250 V: DC-13: 2 A / DC 24 V

switching frequency with without load max:

10 min-1 / 1200 min-1

switching power resistive max:

AC 2000 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

wago basic relay:

788-157

weight:

47.566 g

width:

15 mm / 0.591 inch
