WAGO 789-571
Wago
$83.71

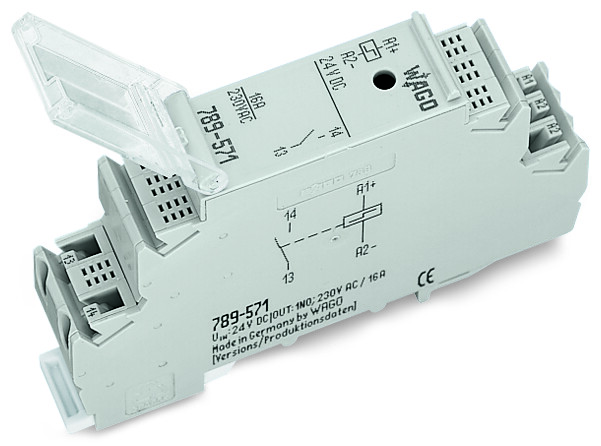

Latching relay module; Nominal input voltage: 24 VDC; 1 make contact; Limiting continuous current: 16 A; Red status indicator; Module width: 18 mm; 2,50 mm²; gray.
The WAGO 789 series is a fixed-type relay module featuring a red LED and a bistable/latching mechanism. It is a single-pole (1P) relay with a control voltage range of 20.4-26.4Vdc (nominal 24Vdc) and operates as a Single Pole Single Throw - Normally Open (SPST-NO) relay. The electromechanical design supports a rated current of 16A continuously and utilizes CAGE CLAMP connections for secure wiring. It is designed for DIN-35 rail mounting with a width of 17.5mm and has an IP20 protection rating. The relay contacts are made of Silver-Tin (AgSnO) material, and it is equivalent to the model 789571.
- circuit protection:
- Circuit breaker: 16 A (max.): Tripping characteristic: B
- coil control:
- Pulse mode
- color:
- Gray
- connection technology:
- CAGE CLAMP
- contact material relay:
- AgSnO2
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 55 mm / 2.165 inch
- dielectric strength control load circuit ac 1 min:
- 4 kVrms
- electrical life no resistive load 23 c:
- 50 x 103 switching operations
- fine stranded conductor:
- 0.2 2.5 mm / 24 14 AWG
- fire load:
- 0.742 MJ
- height:
- 90 mm / 3.543 inch
- input voltage range:
- -15 +10 %
- inrush current resistive max:
- (AC) 50 A / 0.02 s
- limiting continuous current:
- 16 A
- mechanical life:
- 1 x 106 switching operations
- minimum break time:
- 180 ms
- minimum pulse length control input:
- 40 ms
- mounting type:
- DIN-35 rail
- nominal input current at un:
- 42 mA
- nominal input voltage un:
- DC 24 V
- number of make switch on contacts:
- 1
- packaging type:
- Box
- pollution degree:
- 2
- processing temperature:
- -25 +50 C
- protection type:
- IP20
- rated surge voltage:
- 4 kV
- rated voltage:
- 250 V
- recommended minimum load:
- 10 V / 10 mA
- solid conductor:
- 0.2 2.5 mm / 24 14 AWG
- standards specifications:
- EN 60664-1
- status indicator:
- Red LED
- strip length:
- 9 10 mm / 0.35 0.39 inch
- surrounding air temperature operation at un:
- -25 40 C
- surrounding air temperature storage:
- -40 85 C
- switching frequency with without load max:
- 6 min-1 / 240 min-1
- switching power resistive max:
- AC 4000 VA
- switching voltage max:
- AC 250 V
- weight:
- 58.822 g
- width:
- 17.5 mm / 0.689 inch
