Wago

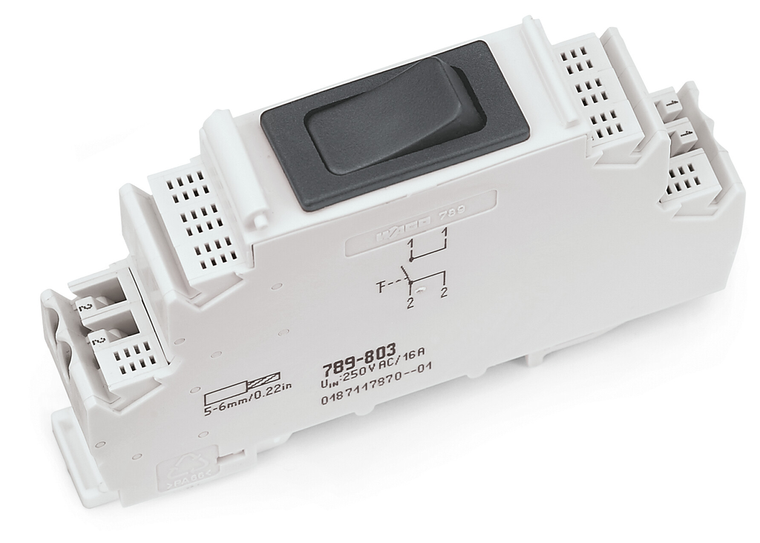

WAGO 789-803

SKU:

789-803

UPC:

MPN:

789-803

Condition:

New

connection technology:

CAGE CLAMP

contact gap:

3 mm

contact material switch:

Ag alloy

contact resistance:

¤ 100 m (12 V/1 ADC: New condition)

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

55 mm / 2.165 inch

dielectric strength open contact ac 1 min:

1.25 kVrms

electrical life no resistive load 23 c:

10 x 103 switching operations

fine stranded conductor:

0.2 2.5 mm / 24 14 AWG

fire load:

3.494 MJ

height:

90 mm / 3.543 inch

housing design:

DIN-rail-mount enclosure

inrush current max:

100 A (Capacitive)

insulation resistance:

100 M (500 VDC: New condition)

mechanical life:

50 x 103 switching operations

mounting type:

DIN-35 rail

operating voltage:

¤250 VAC

packaging type:

Box

pollution degree:

2

rated surge voltage:

4 kV

rated voltage:

250 V

solid conductor:

02 2.5 mm / 24 14 AWG

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation at un:

-20 55 C

surrounding air temperature storage:

-40 80 C

switching current resistive max:

16 A

switching voltage max:

AC 250 V

weight:

42.365 g

width:

17.5 mm / 0.689 inch
