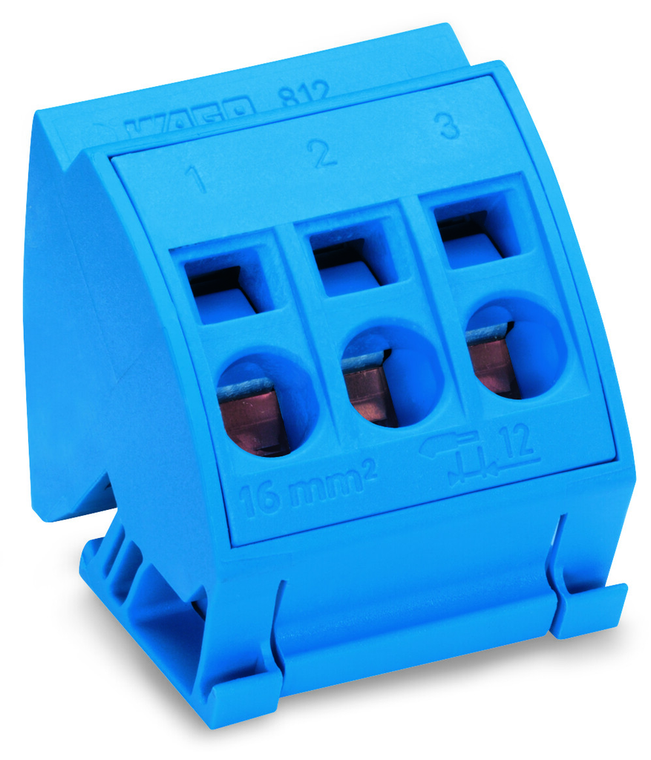

Busbar terminal block; for (10 x 3) mm busbars; 3-pole; without push-buttons; CAGE CLAMP; 16,00 mm²; blue.
The WAGO 812 series terminal strip is a blue, 1-deck/level component designed for neutral connections with three clamps, accommodating wire sizes from 1.5mm² to 16mm² or #14AWG to #6AWG. It supports a rated current of 96A and features CAGE CLAMP spring connections. This terminal strip mounts on a 10x3mm copper bar and is equivalent to model 812114.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth:
- 43.5 mm / 1.713 inch
- fine stranded conductor:
- 1.5 16 mm / 14 6 AWG
- fire load:
- 0.852 MJ
- height:
- 42.5 mm / 1.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- nominal voltage iii 3:
- 1000 V
- note on rated current 1:
- Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used.
- packaging type:
- Box
- pole no:
- 3
- rated current:
- 96 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 1.5 16 mm / 14 6 AWG
- strip length:
- 12 mm / 0.47 inch
- weight:
- 42.900 g
- width:
- 38 mm / 1.496 inch
- wiring direction:
- Front-entry wiring
