Wago

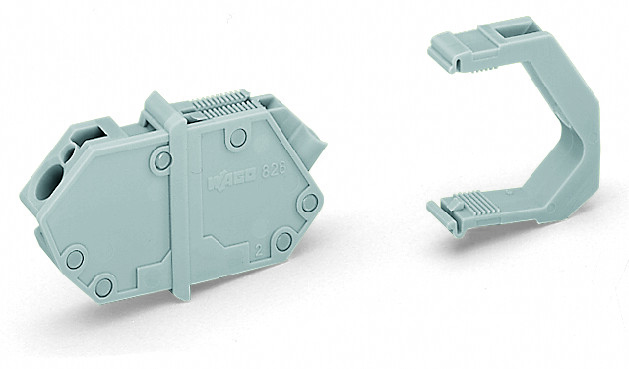

WAGO 826-161

SKU:

826-161

UPC:

MPN:

826-161

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

42.5 mm / 1.673 inch

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm

fire load:

0.123 MJ

flammability class per ul94:

V0

height:

23.55 mm / 0.927 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mounting type:

Locking claw || Feed-through mounting

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

packaging type:

Box

pin spacing:

7 mm / 0.276 inch

pole no:

1

rated current:

32 A

rated current csa use group b:

20 A

rated current csa use group c:

20 A

rated current csa use group d:

0.416666666666667

rated current ul use group b:

20 A

rated current ul use group c:

20 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group c:

150 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

150 V

rated voltage ul use group d:

300 V

ratings note:

Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (conductor-to-conductor) per IEC/EN 60664-1.

ratings per:

IEC/EN 60664-1

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

6.250 g

width:

8.6 mm / 0.339 inch
