Description
- Feedthrough terminal blocks with screwdriver-actuated CAGE CLAMP<sup></sup> on both sides
- Easy, tool-free installation
- Direct ground contact with enclosure/panel
- Test ports available on both sides

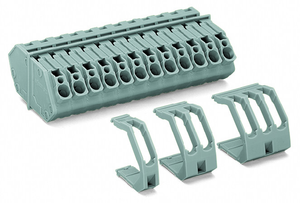

The WAGO 826 series feed-through terminal block is a 1-deck, gray unit with a 7mm pin spacing, featuring 10 feed-through poles and 20 wires (10 clamps on each side). It supports wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG) and is rated for a current of 32A. The terminal block uses CAGE CLAMP spring connections and is designed for through-door mounting, equivalent to model 826170.
