Wago

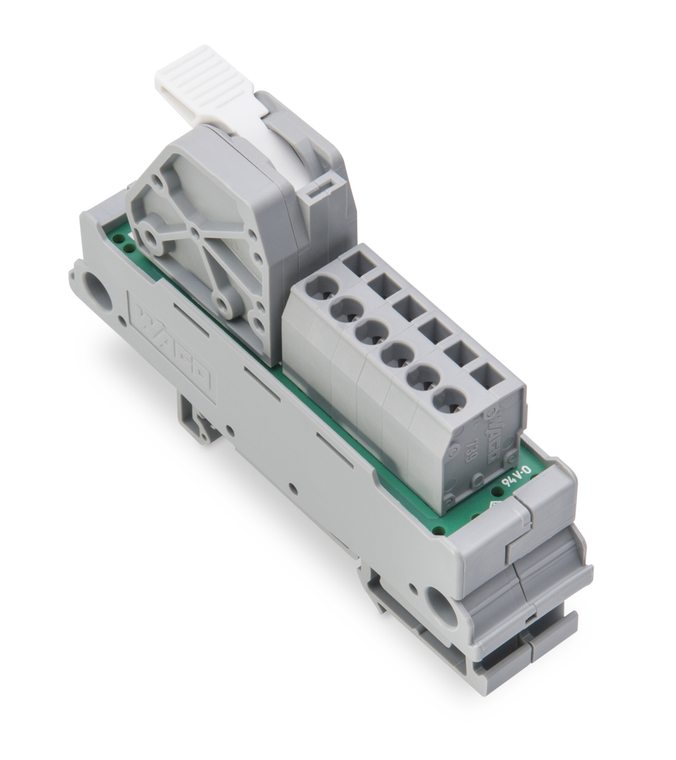

WAGO 830-800/000-312/000-006

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 830-800/000-312/000-006

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

830-800/000-312/000-006

UPC:

MPN:

830-800/000-312/000-006

Condition:

New

connection technology:

CAGE CLAMP

connection technology 2:

CAGE CLAMP

connection type 1:

Input

connection type 2:

Output

country of origin sales organisation germany:

US

current per connection max:

0

depth:

85 mm / 3.35 inch

fine stranded conductor:

1.5 16 mm / 16 6 AWG

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fire load:

0.758 MJ

height from upper edge of din rail:

49 mm / 1.929 inch

housing design:

Mounting carrier

mating direction:

30

mating direction 2:

45

mounting type:

DIN-35 rail

note conductor cross section:

12 AWG: THHN, THWN

operating voltage:

¤ AC/DC 250 V

packaging type:

BOX

relative humidity:

¤ 95% (without condensation)

solid conductor:

1.5 16 mm / 16 6 AWG

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

standards specifications:

CULus 61010-2-201

strip length:

12 13 mm / 0.47 0.51 inch

strip length 2:

8 9 mm / 0.31 0.35 inch

surrounding air temperature operation:

-20 50 C

total current per potential max:

65 A

total number of potentials:

1

wago connector:

WAGO 2716 Series

wago connector 2:

WAGO 739 Series

weight:

55.160 g

width:

21 mm / 0.81 inch
