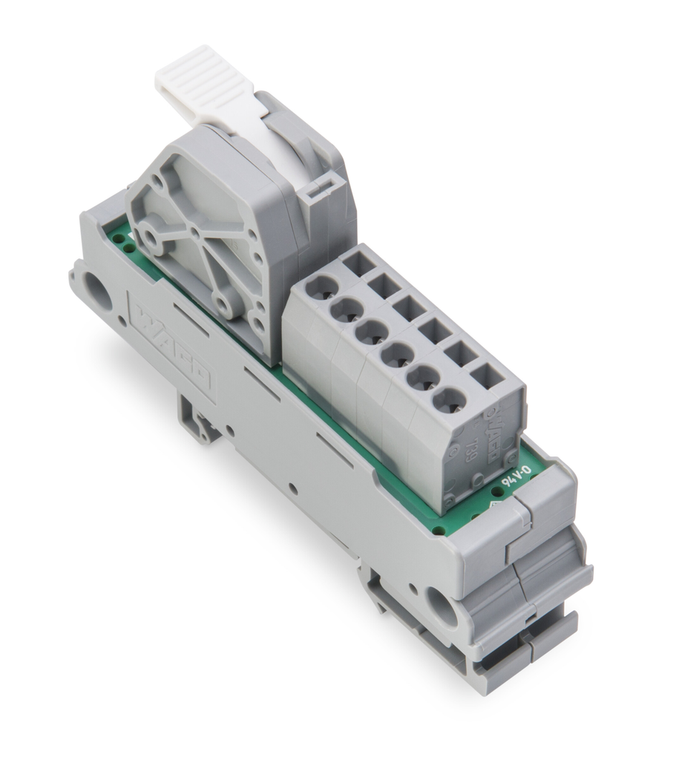

WAGO 830-800/000-312 Interface Module Terminal Block
Wago
$28.45
Potential distribution module; 1 potential; with 1 input clamping point; Conductor cross-section up to 16 mm²; with lever; with 6 output clamping points; Conductor cross-section up to 2.5 mm².
The WAGO 830 series potential distribution module is a gray unit designed for DIN-35 rail mounting with a width of 21mm. It features an operating lever on the inputs and provides one potential with six output clamping points, each capable of handling up to 12A. The module supports connections for 16mm² wires and utilizes CAGE CLAMP spring connections for secure and reliable wiring. This module is equivalent to the model number 830800000312.
- connection technology:
- CAGE CLAMP
- connection technology 2:
- CAGE CLAMP
- connection type 1:
- Input
- connection type 2:
- Output
- country of origin sales organisation germany:
- US
- current per connection max:
- 0
- depth:
- 85 mm / 3.35 inch
- fine stranded conductor:
- 1.5 16 mm / 16 6 AWG
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.764 MJ
- height from upper edge of din rail:
- 49 mm / 1.929 inch
- housing design:
- Mounting carrier
- mating direction:
- 30
- mating direction 2:
- 45
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- operating voltage:
- ¤ AC/DC 250 V
- packaging type:
- Box
- relative humidity:
- ¤ 95% (without condensation)
- solid conductor:
- 1.5 16 mm / 16 6 AWG
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- standards specifications:
- CULus 61010-2-201
- strip length:
- 12 13 mm / 0.47 0.51 inch
- strip length 2:
- 8 9 mm / 0.31 0.35 inch
- surrounding air temperature operation:
- -20 50 C
- total current per potential max:
- 65 A
- total number of potentials:
- 1
- wago connector:
- WAGO 2716 Series
- wago connector 2:
- WAGO 739 Series
- weight:
- 57.760 g
- width:
- 21 mm / 0.81 inch
