Wago

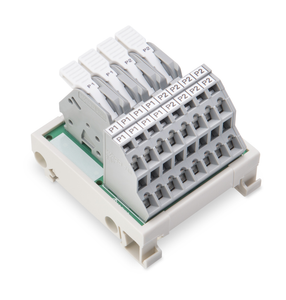

WAGO 830-800/000-316

SKU:

830-800/000-316

UPC:

MPN:

830-800/000-316

Condition:

New

connection technology:

CAGE CLAMP

connection technology 2:

CAGE CLAMP

connection type 1:

Input

connection type 2:

Output

country of origin sales organisation germany:

US

current per connection max:

0.416666666666667

depth:

55 mm / 2.17 inch

fine stranded conductor:

0.5 6 mm / 20 10 AWG

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fire load:

0.831 MJ

height from upper edge of din rail:

38 mm / 1.47 inch

housing design:

Mounting carrier

mating direction:

30

mating direction 2:

Vertical

mounting type:

DIN-35 rail

note conductor cross section:

12 AWG: THHN, THWN

operating voltage:

¤ AC/DC 250 V

packaging type:

Box

relative humidity:

¤ 95% (without condensation)

solid conductor:

0.5 6 mm / 20 10 AWG

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

standards specifications:

CULus 61010-2-201

strip length:

11 12 mm / 0.43 0.47 inch

strip length 2:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-20 50 C

total current per potential max:

30 A

total number of potentials:

2

wago connector:

WAGO 2706 Series

wago connector 2:

WAGO 736 Series

weight:

101.633 g

width:

69 mm / 2.72 inch
