Wago

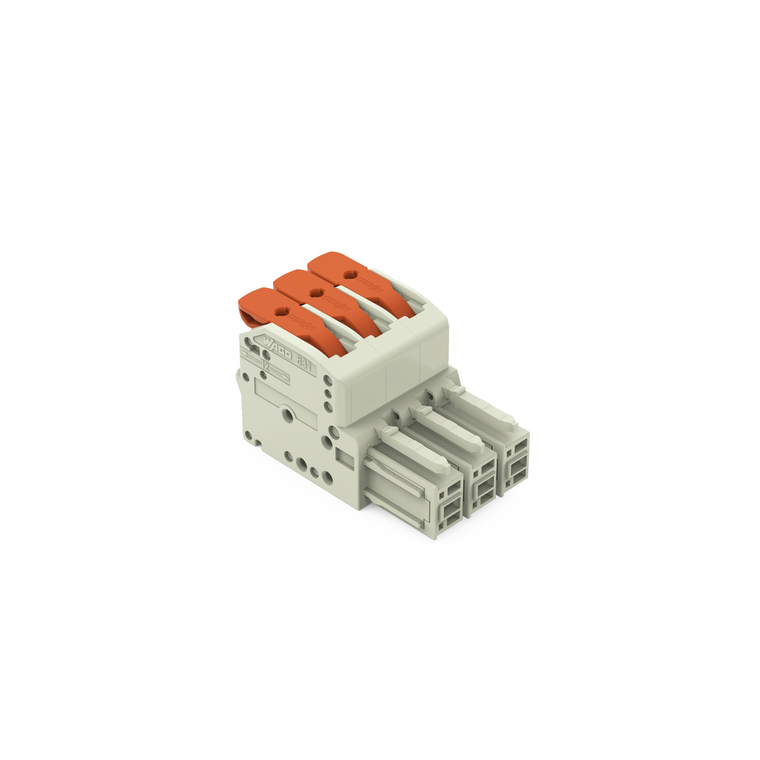

WAGO 831-1103

SKU:

831-1103

UPC:

MPN:

831-1103

Condition:

New

actuation type:

Lever

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

color of actuator:

Orange

conductor entry direction to mating direction:

0

connection technology:

Push-in CAGE CLAMP

connector connection type:

For conductor

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

45.7 mm / 1.799 inch

fine stranded conductor:

0.5 10 mm / 20 8 AWG

fine stranded conductor with insulated ferrule:

0.5 6 mm

fine stranded conductor with uninsulated ferrule:

0.5 6 mm

fire load:

0.265 MJ

flammability class per ul94:

V0

height:

25 mm / 0.984 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

locking of plug in connection:

Without

material group:

I

mismating protection:

Yes

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

800 V

packaging type:

Box

pin spacing:

7.62 mm / 0.3 inch

pole no:

3

rated current:

41 A

rated current csa use group c:

35 A

rated current csa use group d:

0.208333333333333

rated current ul use group c:

35 A

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group c:

600 V

rated voltage csa use group d:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group c:

600 V

rated voltage ul use group d:

600 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.5 10 mm / 20 8 AWG

strip length:

11 13 mm / 0.43 0.51 inch

weight:

20.385 g

width:

24.8 mm / 0.975 inch
