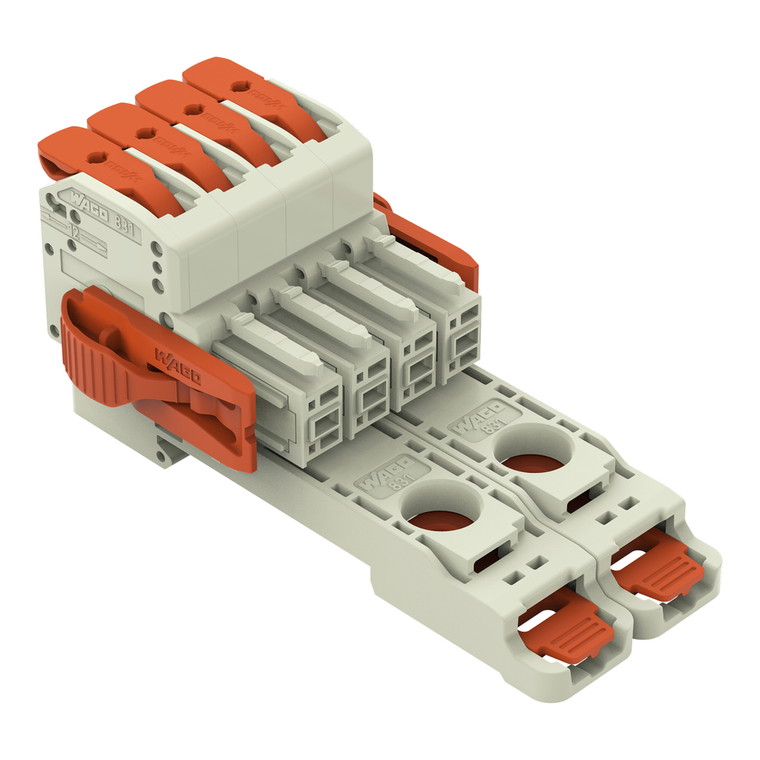

WAGO 831-1104/038-000/306-000 1-Conductor Female Connector Pack of 6
Wago
$106.20
1-conductor female connector lever Push-in CAGE CLAMP, light gray.
The WAGO component equivalent to 8311104038000306000 is a specific part or model number used for identification and reference within WAGO's product catalog. This number helps in accurately locating and specifying the exact component needed for various applications, ensuring compatibility and proper functionality in electrical and automation systems.
- actuation type:
- Lever
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- color of actuator:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 88.4 mm / 3.480 inch
- fine stranded conductor:
- 0.5 ª 10 mm / 20 ª 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 ª 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 ª 6 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 36.2 mm / 1.425 inch
- height from upper edge of din rail:
- 31.6 mm / 1.244 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- locking of plug in connection:
- Lateral locking lever
- material group:
- I
- mismating protection:
- Yes
- mounting type:
- DIN-35 rail || Panel mounting
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- pin spacing:
- 7.62 mm / 0.3 inch
- pole no:
- 4
- rated current:
- 41 A
- rated current csa use group c:
- 35 A
- rated current csa use group d:
- 0.208333333333333
- rated current ul use group c:
- 35 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group c:
- 600 V
- rated voltage csa use group d:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group c:
- 600 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS ´ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.5 ª 10 mm / 20 ª 8 AWG
- strip length:
- 11 ª 13 mm / 0.43 ª 0.51 inch
- weight:
- 41.503 g
- width:
- 56.38 mm / 2.22 inch
