Wago

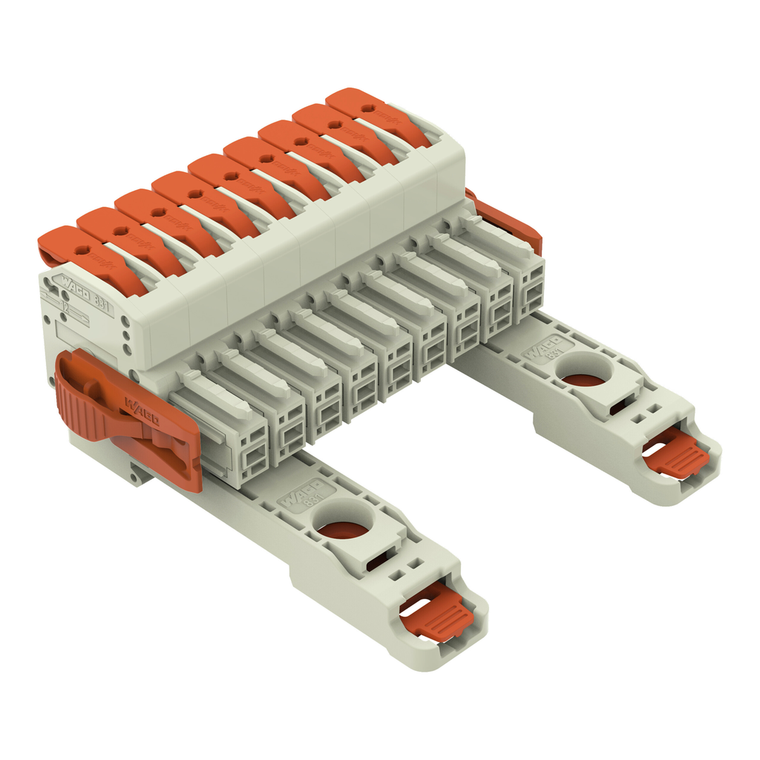

WAGO 831-1109/038-000/306-000 Pack of 6

SKU:

831-1109/038-000/306-000

UPC:

MPN:

831-1109/038-000/306-000

Condition:

New

actuation type:

Lever

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

color of actuator:

Orange

conductor entry direction to mating direction:

0

connection technology:

Push-in CAGE CLAMP«

connector connection type:

For conductor

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

88.4 mm / 3.480 inch

fine stranded conductor:

0.5 ƒƒ‡ª 10 mm / 20 ƒƒ‡ª 8 AWG

fine stranded conductor with insulated ferrule:

0.5 ƒƒ‡ª 6 mm

fine stranded conductor with uninsulated ferrule:

0.5 ƒƒ‡ª 6 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

36.2 mm / 1.425 inch

height from upper edge of din rail:

31.6 mm / 1.244 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +105 C

locking of plug in connection:

Lateral locking lever

material group:

I

mismating protection:

Yes

mounting type:

DIN-35 rail || Panel mounting

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

800 V

pin spacing:

7.62 mm / 0.3 inch

pole no:

9

rated current:

41 A

rated current csa use group c:

35 A

rated current csa use group d:

0.208333333333333

rated current ul use group c:

35 A

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

8 kV

rated surge voltage iii 2:

8 kV

rated surge voltage iii 3:

8 kV

rated voltage csa use group c:

600 V

rated voltage csa use group d:

600 V

rated voltage iii 2:

1000 V

rated voltage ul use group c:

600 V

rated voltage ul use group d:

600 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS ƒƒ‡ƒƒ´ MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solid conductor:

0.5 ƒƒ‡ª 10 mm / 20 ƒƒ‡ª 8 AWG

strip length:

11 ƒƒ‡ª 13 mm / 0.43 ƒƒ‡ª 0.51 inch

weight:

72.798 g

width:

94.48 mm / 3.72 inch
