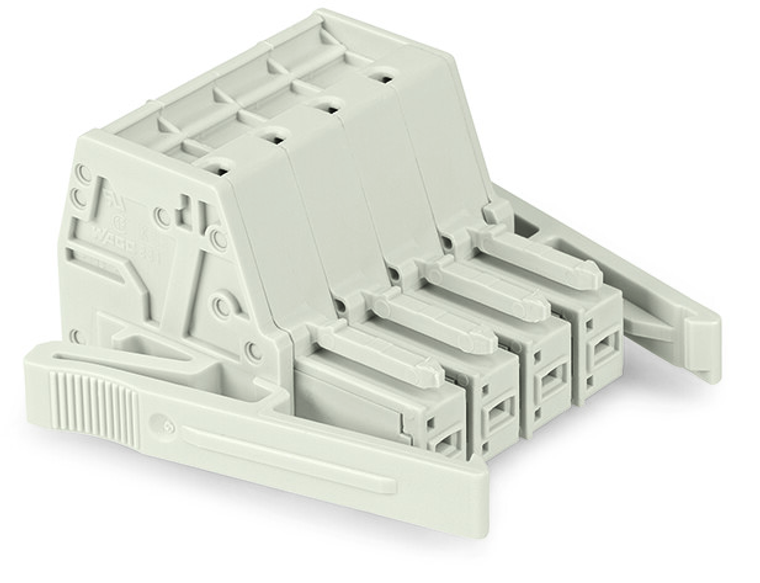

WAGO 831-3108/037-000 8-Pole Female Connector, 7.62 mm Pitch, Light Gray
Wago
$21.26
1-conductor female connector; Push-in CAGE CLAMP; 10 mm²; Pin spacing 7.62 mm; 8-pole; 100% protected against mismating; Lateral locking levers; 10,00 mm²; light gray.
The WAGO component equivalent to 8313108037000 is a specific part or module used in electrical and automation systems. This component is likely designed to meet certain technical specifications and standards, ensuring compatibility and functionality within WAGO's range of products. It may be used in various applications such as industrial automation, building technology, or other electrical engineering fields, providing reliable performance and integration with other WAGO components.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connection technology 2:
- Quick-connect/solder contact
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 41.9 mm / 1.65 inch
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 6 mm
- fire load:
- 0.876 MJ
- flammability class per ul94:
- V0
- height:
- 27.6 mm / 1.087 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- locking of plug in connection:
- Locking lever
- material group:
- I
- material of the additional spring for socket contact:
- Chrome nickel spring steel (CrNi)
- mismating protection:
- Yes
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- pin spacing:
- 7.62 mm / 0.3 inch
- pole no:
- 8
- rated current:
- 41 A
- rated current csa use group c:
- 41 A
- rated current ul use group c:
- 42 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 61.924 g
- width:
- 87.64 mm / 3.45 inch
