Wago

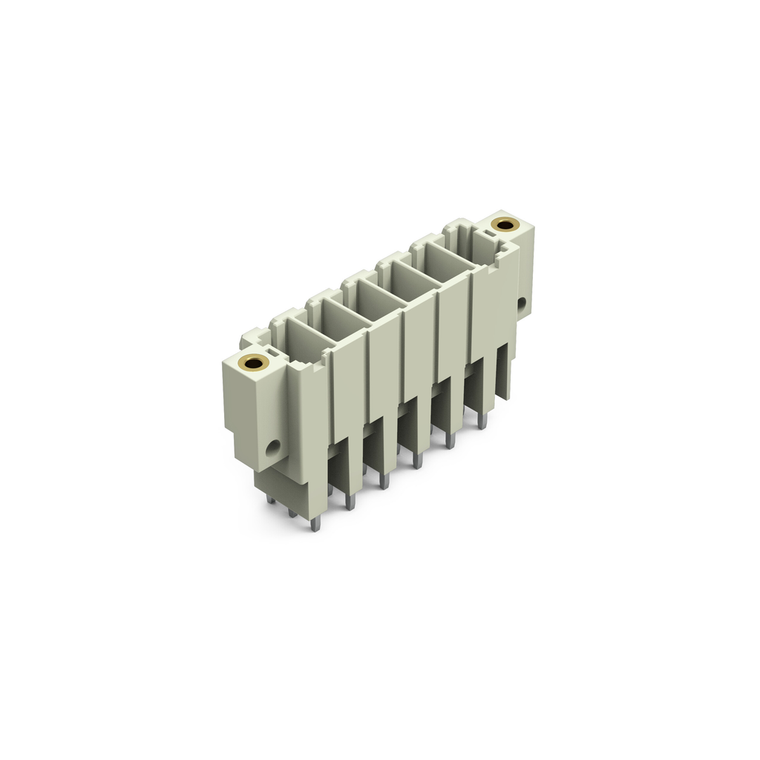

WAGO 831-3606/108-000

SKU:

831-3606/108-000

UPC:

MPN:

831-3606/108-000

Condition:

New

approvals per:

CSA

color:

Light gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

PL

depth:

14.8 mm / 0.583 inch

drilled hole diameter with tolerance:

1.7 (+0.1) mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

33 mm / 1.299 inch

height from the surface:

29 mm / 1.142 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

locking of plug in connection:

Threaded flange

material group:

I

mating direction to the pcb:

90

mismating protection:

Yes

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

500 V

number of solder pins per potential:

3

pcb contact:

THT

pin spacing:

7.62 mm / 0.3 inch

pole no:

6

rated current:

41 A

rated current csa use group c:

41 A

rated current csa use group d:

0.208333333333333

rated current ul use group c:

42 A

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage csa use group c:

300 V

rated voltage csa use group d:

600 V

rated voltage iii 2:

630 V

rated voltage ul use group c:

300 V

rated voltage ul use group d:

600 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

1 x 1.2 mm

solder pin length:

4 mm

weight:

19.780 g

width:

61.3 mm / 2.414 inch
